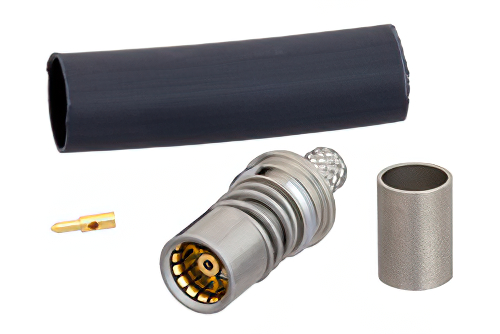

BMA Jack Snap-On Connector Crimp/Solder Attachment for RG142, RG223, RG400, RG55

Product ID: PE45320
BMA Jack Snap-On Connector Crimp/Solder Attachment for RG142, RG223, RG400, RG55


Image Views:  BMA Jack Snap-On Connector Crimp/Solder Attachment for RG142, RG223, RG400, RG55 high resolution
Zoomalternate image
View 2


Click for:PE45320 Datasheet
Click for:PE45320 RoHS Cert
Click for:PE45320 REACH Cert
Available Quantity: 142
Pricing Table
QUANTITYPRICE
1-24$98.08
25-49$91.21
50-99$84.35
100-249$78.46
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesBMA
Connector GenderJack
Impedance50 Ohm
Body StyleStraight
Attachment MethodCrimp/Solder
Mount MethodNone
Minimum FrequencyDC
Maximum Frequency12.4 GHz


BMA Jack Snap-On Connector Crimp/Solder Attachment for RG142, RG223, RG400, RG55

PE45320 BMA jack coaxial snap-on connector has an interface type of RG142, RG223, RG400, RG55 and a 50 Ohm impedance. Pasternack BMA jack connector uses shield/contact crimp/solder as an attachment method. Our jack BMA coaxial connector provides a minimum frequency of DC and a maximum frequency of 12.4 GHz.

The Pasternack BMA coaxial connector has a passivated stainless steel body. Our PE45320 BMA connector uses beryllium copper contact and a gold plating material. This BMA jack coaxial snap-on RF connector is REACH compliant.

This Pasternack jack BMA connector will ship the same day as purchased. Our BMA jack connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom BMA connector cable assemblies that will ship the same day as well.
