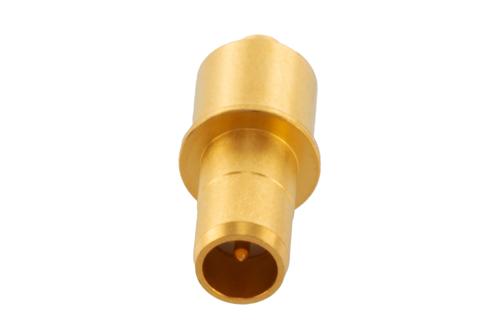

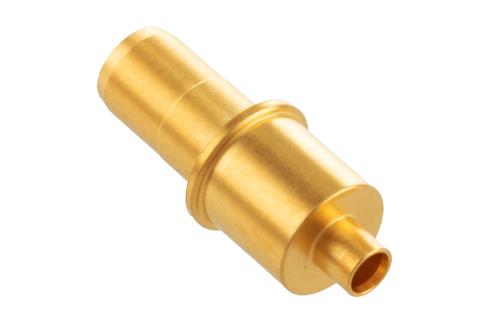

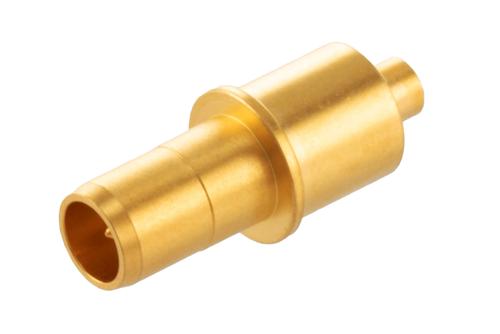

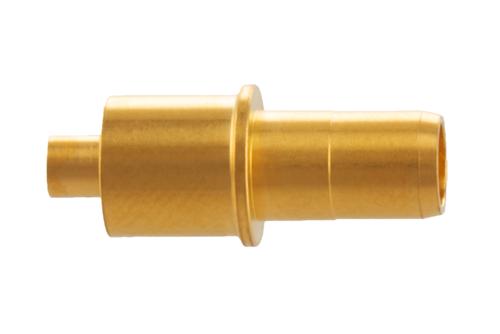

BMA Pin Size 8 D38999 Contact for 0.085 Cable, 22 GHz Max Frequency
Product ID:
PEMACTRF8P01
Pricing
| Quantity | Price |
| 1-24 | $31.59 |
| 25-49 | $30.01 |
| 50-99 | $28.43 |
| 100-249 | $27.17 |
| 250+ | Call Us |
* All Prices are in US Dollars and do not include duties
Buy
Available Quantity: 9
Same-Day Shipping!
Order in the next hours!
* All Prices are in US Dollars and do not include duties
Key Specifications
| Key Specifications |
| Contact Size |
8 |
| Contact Series |
BMA |
| Contact Gender |
Pin |
| Max Frequency |
22 GHz |
| VSWR |
1.35:1 |
| Attachment |
Solder/Non-Solder Contact |
| MIL-STD Types |
D38999 Series I, D38999 Series III and D38999 Series IV |
Description
BMA Pin Size 8 D38999 Contact for 0.085 Cable, 22 GHz Max Frequency
The PEMACTRF8P01 from Pasternack is a size 8 BMA pin contact that is designed for D38999 Series I, D38999 Series III, and D38999 Series IV military type connector shells. This RF coaxial contact has a solder/non-solder contact attachment method and is built to offer superior performance in demanding applications that require high-frequency data transmission. The BMA coax contact comes with an impedance of 50 Ohms and a maximum VSWR of 1.35.
Our RF contact has a maximum frequency of 22 GHz. This BMA RF contact is made up of stainless steel material with gold plating. The PEMACTRF8P01 coax contact has a PTFE dielectric type and a dielectric withstanding voltage of 1000 Vrms. Our BMA pin contact has a maximum insertion loss of 0.375 dB.
Pasternack’s RF contact has an inner conductor material constructed of beryllium copper and an outer conductor material of stainless steel. These RF coax contacts are specifically engineered to minimize signal loss and crosstalk, providing excellent impedance matching and reducing VSWR. Our BMA pin contact can operate at temperatures ranging from -65 to 165 degrees C.
PEMACTRF8P01 RF contact is part of more than one million RF, microwave, and millimeter wave parts in stock at Pasternack. This PEMACTRF8P01 coax contact is ready to buy and can be shipped worldwide the same business day as ordered from our warehouse in the United States. Pasternack maintains BMA pin RF contacts in various sizes and configurations, which allows them to be customized to meet the specific requirements of different applications. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF contact as per your requirements.
Features
- Fits any MIL-DTL-38999 size 8 insert
- Superior high frequency performance
- Blindmate connections
- Made from high quality materials giving a robust mechanical design
- Solderless inner connection to reduce assembly cost
Applications
- Civilian and Military Aerospace
- High Reliability Installations
- Harsh Environments
