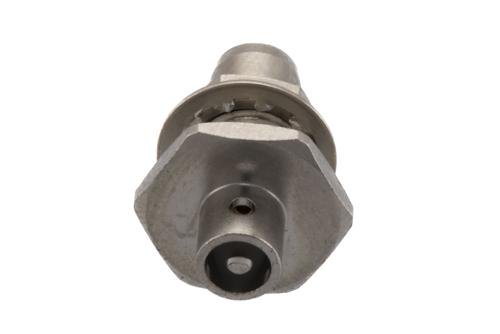

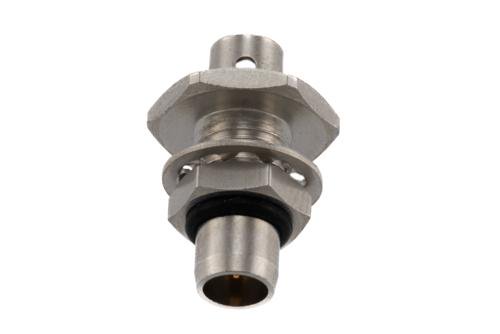

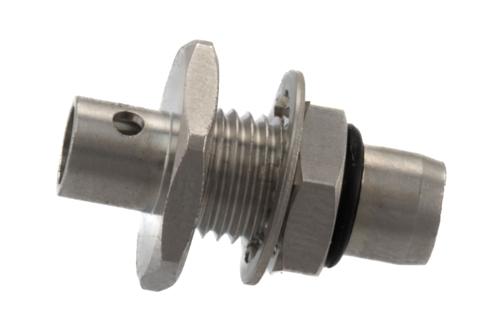

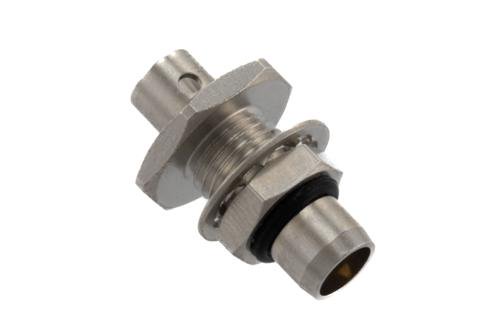

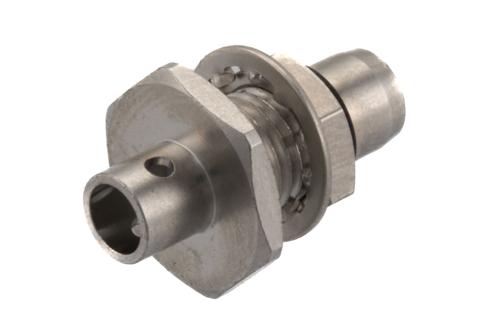

PE5152 BMA plug bulkhead coaxial connector has an interface type of BMA plug, which is compatible with PE-SR402AL, PE-SR402FL, PE-SR402FLJ, RG402 and RG402 tinned cables, and has an impedance of 50 Ohms. Pasternack’s BMA plug bulkhead connector uses solder as an attachment method. Our plug BMA coaxial connector provides a maximum frequency of 18 GHz. This BMA plug RF connector is stocked to be readily available for same business day shipment and can also be designed onto custom cable configurations using our online cable creator.
The Pasternack BMA plug bulkhead coaxial connector has a PTFE dielectric type and a VSWR of 1.3:1. Pasternack’s BMA coaxial connector has a brass body with copper-tin-zinc alloy plating. Our PE5152 BMA connector uses a gold over nickel over copper-plated beryllium copper contact. The Pasternack RF connector has a maximum inner and outer conductor resistance of 2 mOhms. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
The PE5152 BMA bulkhead connector operates at a temperature range of -65 to 165 deg C. Our plug BMA coaxial RF connector has a maximum insertion loss of 0.127 dB. This BMA connector has a gold over nickel over copper inner contact plating. The Pasternack BMA plug connector has a maximum operating voltage of 1,000 Vrms and a dielectric withstanding voltage of 1,500 Vrms. This coaxial RF connector comes with a minimum insulation resistance of 5,000 MOhms. Our BMA plug connector has a length of 0.689 inches, a width of 0.433 inches, and a weight of 0.0075 lbs. This radio frequency coaxial connector comes with a copper-tin-zinc alloy-plated brass washer.
This Pasternack plug BMA bulkhead connector will ship the same business day as purchased. Our bulkhead BMA plug coaxial connector is part of over one million RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
