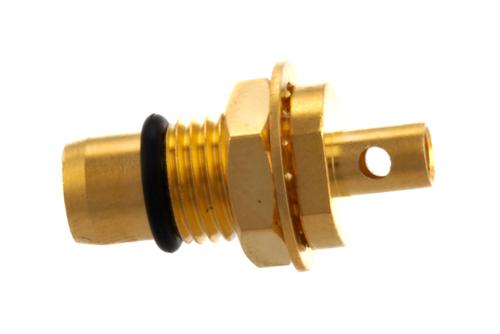

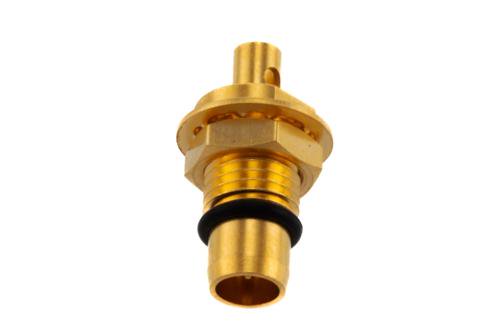

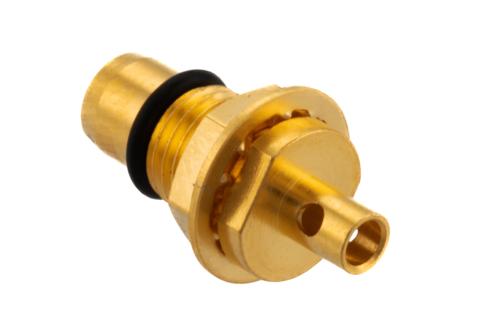

PE5151 BMA plug bulkhead coaxial connector has an interface type of BMA plug which is compatible with PE-SR405AL, PE-SR405FL, PE-SR405FLJ, RG405 and RG405 tinned cables and has an impedance of 50 Ohms. Pasternack’s BMA plug bulkhead connector uses solder as an attachment method. Our plug BMA coaxial connector provides a maximum frequency of 18 GHz. This BMA plug RF connector is stocked to be readily available for same business day shipment and can be expertly assembled using our online cable creator.
The Pasternack BMA plug bulkhead coaxial connector has a PTFE dielectric type and a VSWR of 1.25:1. Pasternack’s BMA coaxial connector has a brass body with gold over nickel over copper plating. Our PE5151 BMA connector uses a gold over nickel over copper-plated beryllium copper contact. The Pasternack RF connector has a maximum inner and outer conductor resistance of 2 mOhms. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
The PE5151 BMA bulkhead connector operates at a temperature range of -65 to 165 deg C. This plug BMA coaxial RF connector has a maximum insertion loss of 0.127 dB. This BMA connector has a gold over nickel over copper inner contact plating. The Pasternack BMA plug connector has a maximum operating voltage of 670 Vrms and a dielectric withstanding voltage of 1,000 Vrms. This coaxial RF connector comes with a minimum insulation resistance of 5,000 MOhms. This radio frequency coaxial connector comes with a gold over nickel over copper plated brass washer.
This Pasternack plug BMA bulkhead connector will ship the same business day as purchased. Our bulkhead BMA plug connector is part of over one million RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
