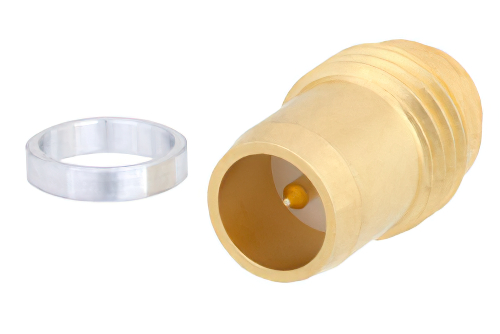

PE45350 BMA plug thread-in hermetically sealed terminal slide-on connector has an interface type of BMA plug, which is compatible with pin cables, and has an impedance of 50 Ohms. Pasternack’s BMA plug thread-in connector uses solder as an attachment method. Our plug BMA terminal connector provides a maximum frequency of 22 GHz. This BMA plug RF connector is stocked to be readily available for same business day shipment and can also be designed onto custom cable configurations using our online cable creator.
The Pasternack BMA plug thread-inhermetically sealed terminalslide-on connector has a PTFE dielectric type and a VSWR of 1.25:1. Pasternack’s BMA terminal connector has a stainless steel body with gold plating. Our PE45350 BMA connector uses a gold-plated beryllium copper contact. This BMA connector is suitable for applications including Blind Mating, Rack and Panel, Phased Array Systems, Base Stations, RF Backplanes, Test I/O. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
The radio frequency connector made from stainless steel material has a contact life of 1000 cycles or more. Our high-quality PE45350 RF connector features a 19.68µ in. minimum body plating specification. The PE45350 BMA thread-in connector operates at a temperature range of -65 to 125 deg C. Our plug BMA terminal RF connector has a maximum insertion loss of 0.32 dB. This BMA connector has a gold inner contact plating. The Pasternack BMA plug connector has a maximum operating voltage of 500 Vrms and a dielectric withstanding voltage of 1,500 Vrms. This terminal RF connector comes with a minimum insulation resistance of 5,000 MOhms. Our BMA plug connector has a length of 0.47 inches, a width of 0.25 inches, and a weight of 0.008 lbs.
This Pasternack plug BMA thread-in connector will ship the same business day as purchased. Our thread-in BMA plug terminal connector is part of over one million RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
