Slide-On BMA Plug Bulkhead to SMA Male Right Angle Cable Using RG316 Coax

Product ID: PE3C4386
Slide-On BMA Plug Bulkhead to SMA Male Right Angle Cable Using RG316 Coax

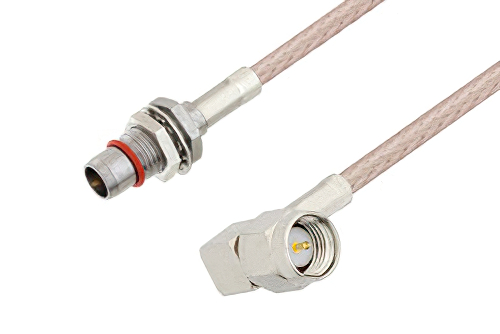

Image Views:  Slide-On BMA Plug Bulkhead to SMA Male Right Angle Cable Using RG316 Coax high resolution
Zoom


Click for:PE3C4386 Datasheet
Click for:PE3C4386 REACH Cert
Please Enter Length to Calculate Price
Standard Lengths
6 in.12 in.24 in.36 in.60 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1BMA
Connector Gender 1Plug
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1Bulkhead
Connector Impedance 150 Ohm
Connector Series 2SMA
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Right Angle
Connector Mount Method 2None
Connector Impedance 250 Ohm
RF Cable Part NumberRG316/U
RF Cable TypeRG316
RF Cable Impedance50 Ohm


Slide-On BMA Plug Bulkhead to SMA Male Right Angle Cable Using RG316 Coax

PE3C4386 is a BMA plug bulkhead to SMA male right angle cable using RG316 coax. This Pasternack BMA plug bulkhead to SMA male right angle cable assembly uses a 50 Ohm BMA for connector 1 and a 50 Ohm SMA for connector 2. BMA to SMA right angle coaxial cable assembly uses 90 degree right angle coax cable connector.

Our plug BMA bulkhead to male SMA right angle cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3C4386 BMA plug bulkhead to SMA male right angle cable assembly is constructed with RG316 coax and the maximum VSWR is 1.4:1.
