SMA to BMA Adapters Standard Polarity

Check out our new RF calculators & conversion tools...

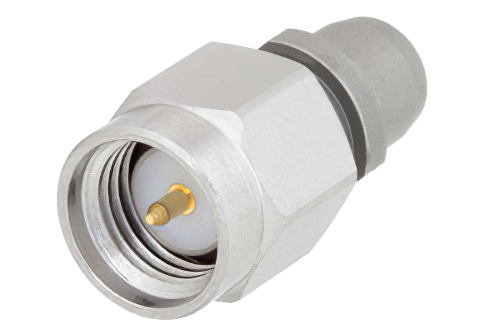

Slide-On BMA Plug to SMA Male Adapter

Product ID: PE91396
Slide-On BMA Plug to SMA Male Adapter


Image Views:  Slide-On BMA Plug to SMA Male Adapter high resolution
Zoomalternate image
View 2


Click for:PE91396 Datasheet
Click for:PE91396 RoHS Cert
Click for:PE91396 REACH Cert
Available Quantity: 17
Pricing Table
QUANTITYPRICE
1-9$104.71
10-24$99.47
25-49$94.24
50+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1BMA
Connector Gender 1Plug
Connector Polarity 1Standard
Connector Impedance 150 Ohm
Connector Series 2SMA
Connector Gender 2Male
Connector Polarity 2Standard
Connector Impedance 250 Ohm
Frequency, MinDC
Frequency, Max18 GHz
Adapter Body StyleStraight
Connector Mount Method 1None
Connector Body Material 1Passivated Stainless Steel
Connector Mount Method 2None
Connector Body Material 2Passivated Stainless Steel


Slide-On BMA Plug to SMA Male Adapter

BMA adapter PE91396 is one of over 40,000 available RF, microwave and millimeter wave components from Pasternack. Our BMA to SMA adapter is a between series coaxial adapter design. This 50 Ohm BMA adapter is precision manufactured to RF components industry specifications and has a maximum frequency of 18 GHz.

BMA plug to SMA male adapter is one of the many RF components that ship same day as they are ordered. PE91396 plug BMA to male SMA adapter has a straight body. This Pasternack straight BMA coax adapter is a in-line RF adapter.

Our plug BMA to male SMA adapter PE91396 is shipped from Pasternack's ISO 9001:2008 facility the same day as purchased. This BMA to SMA radio frequency adapter is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
