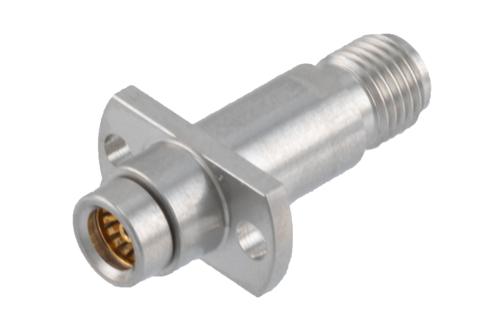

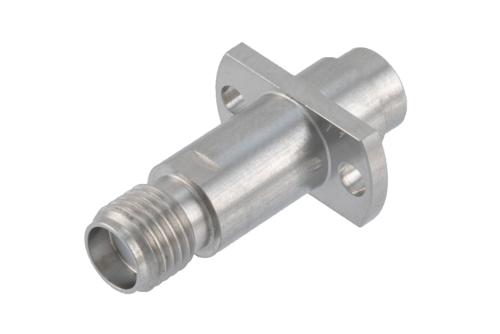

The BMMA to SMA adapter PE910006 is part of our full line of available RF, microwave, and millimeter wave components from Pasternack. Our radio frequency adapter comes with a 50 Ohm impedance and a maximum VSWR of 1.3:1. This RF adapter has a female to female gender configuration, which provides easier connections in tighter spaces. Our BMMA to SMA 2 hole flange adapter is precision manufactured to RF component industry specifications and has a maximum frequency of 18 GHz.
This BMMA female to SMA 2 hole flange female adapter is one of the many RF components that ship the same business day as they are ordered. The PE910006 female BMMA to female SMA adapter has a straight body. Our RF adapter is often used to enable connections between two connector types that would otherwise not mate. Our adapter has a maximum insertion loss of 0.424 dB. This RF adapter has a 0.97-inch length, 0.3-inch width, and 0.02 lbs weight.
The PE910006 adapter from Pasternack is made from a passivated stainless steel connector body and has a brass center contact. Our BMMA female to SMA female 2 hole flange radio frequency adapter can also be used to protect connectors on expensive equipment where the number of connect/disconnect cycles is high. This RF adapter has an operating temperature range of -65 to 165 degrees C. Additional dimensions and specifications for this adapter are on our downloadable PDF datasheet above.
Pasternack has one of the largest in-stock selections of BMMA to SMA 2 hole flange radio frequency adapters for international and domestic orders, including custom cable assemblies. Make your online purchase right now to take advantage of our same-business-day shipping. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the high-quality 18 GHz RF adapter that meets your requirements.
