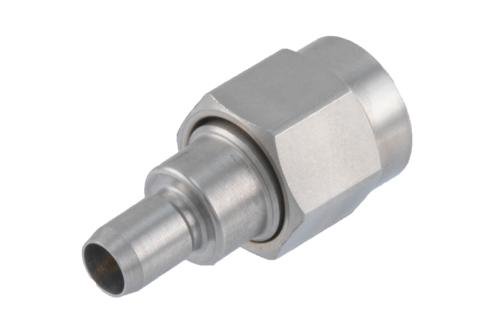

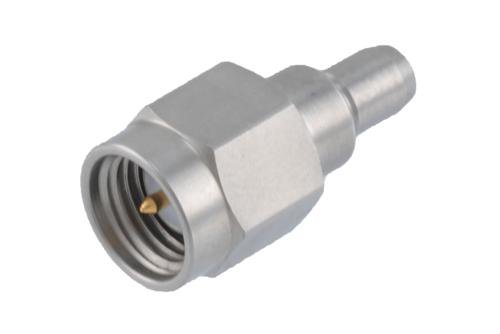

The BMMA to SMA adapter PE910005 is part of our full line of available RF, microwave, and millimeter wave components from Pasternack. Our radio frequency adapter comes with a 50 Ohm impedance and a maximum VSWR of 1.3:1. This RF adapter has a male to male gender configuration, which provides easier connections in tighter spaces. Our BMMA to SMA adapter is precision manufactured to RF component industry specifications and has a maximum frequency of 18 GHz.
This BMMA male to SMA male adapter is one of the many RF components that ship the same business day as they are ordered. The PE910005 male BMMA to male SMA adapter has a straight body. Our RF adapter is often used to enable connections between two connector types that would otherwise not mate. Our adapter has a maximum insertion loss of 0.424 dB. This RF adapter has a 0.67-inch length, 0.35-inch width, and 0.05 lbs weight.
The PE910005 adapter from Pasternack is made from a passivated stainless steel connector body and has a brass center contact. Our BMMA male to SMA male radio frequency adapter can also be used to protect connectors on expensive equipment where the number of connect/disconnect cycles is high. This RF adapter has an operating temperature range of -65 to 165 degrees C. Additional dimensions and specifications for this adapter are on our downloadable PDF datasheet above.
Pasternack has one of the largest in-stock selections of BMMA to SMA radio frequency adapters for international and domestic orders, including custom cable assemblies. Make your online purchase right now to take advantage of our same-business-day shipping. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the high-quality 18 GHz RF adapter that meets your requirements.
