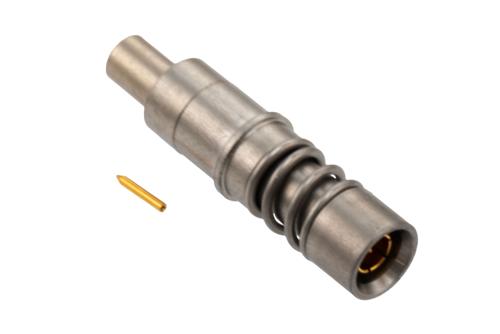

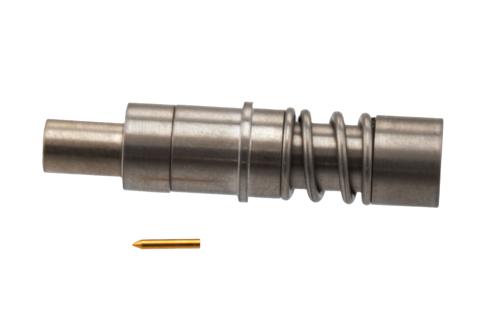

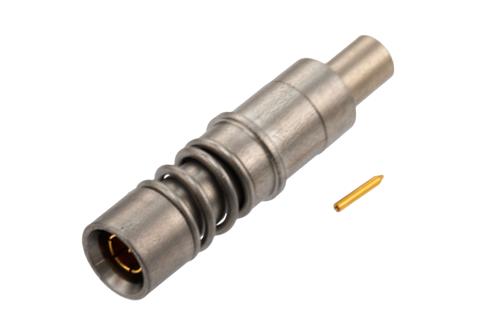

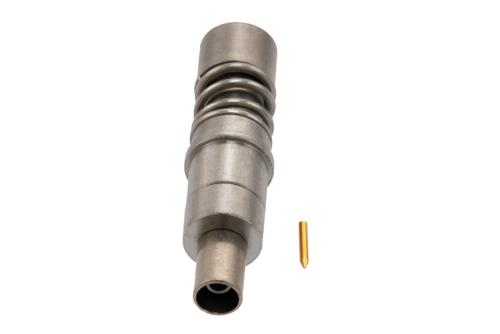

The PEMACTRF8S08 from Pasternack is a D38999 size 8 socket contact that is designed for RG179 cable. This RF coaxial contact has a crimp/non-solder contact attachment method and is built to offer superior performance in demanding applications that require high-frequency data transmission. The BMZ coax contact comes with an impedance of 75 Ohms and a maximum VSWR of 1.5.
Our RF contact has a maximum frequency of 2.15 GHz. This BMZ RF contact is made up of stainless steel material with passivated plating. The PEMACTRF8S08 coax contact has a PTFE dielectric type and a dielectric withstanding voltage of 1000 Vrms. Our BMZ socket contact has a maximum insertion loss of 0.176 dB.
Pasternack’s RF contact has an inner conductor material constructed of brass and an outer conductor material of beryllium copper. These RF coax contacts are specifically engineered to minimize signal loss and crosstalk, providing excellent impedance matching and reducing VSWR. Our BMZ socket contact can operate at temperatures ranging from -55 to 125 degrees C.
PEMACTRF8S08 RF contact is part of more than one million RF, microwave, and millimeter wave parts in stock at Pasternack. This PEMACTRF8S08 coax contact is ready to buy and can be shipped worldwide the same business day as ordered from our warehouse in the United States. Pasternack maintains BMZ socket RF contacts in various sizes and configurations, which allows them to be customized to meet the specific requirements of different applications. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF contact as per your requirements.
