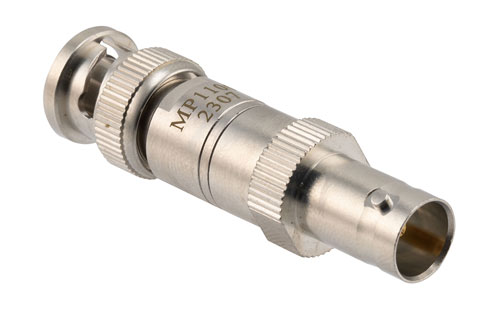

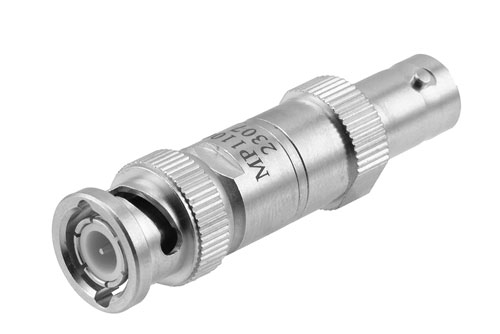

RF impedance matching pad (also referred to as coaxial matching pad) PE70MP1100 from Pasternack has BNC connector in and is 50 Ohm, BNC connector out and is 75 Ohm. This coaxial BNC to BNC impedance matching pad has a male BNC in and a female BNC out. Our 50 Ohm BNC to 75 Ohm BNC impedance matching pad is manufactured with a minimum frequency of DC and a maximum frequency of 3 GHz.
This radio frequency 50 Ohm BNC male to 75 Ohm BNC female RF impedance matching pad design has a maximum attenuation of 7.5. Body material of the 50 Ohm BNC to 75 Ohm BNC matching pad is brass.
50 Ohm BNC male to 75 Ohm BNC female RF impedance pad PE70MP1100 from Pasternack is rated for a maximum VSWR of 1.25:1 and a maximum input power of 0.5 Watts. This matching pad is just part of over 40,000 RF, microwave and millimeter wave components supplied by Pasternack. This impedance matching pad with BNC to BNC connectors is in-stock and Pasternack is where to buy your RF components for same day shipping throughout the United States and internationally, as with all other Pasternack radio frequency parts.
