BNC Female to BNC Female Cable Assemblies

Check out our new RF calculators & conversion tools...

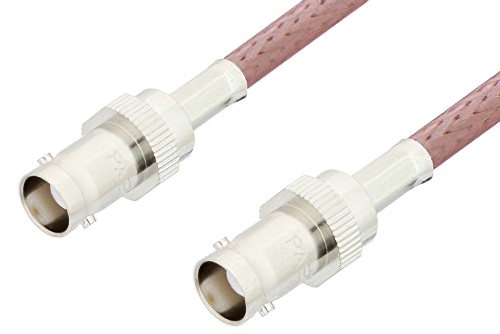

BNC Female to BNC Female Cable Using RG142 Coax

Product ID: PE3088
BNC Female to BNC Female Cable Using RG142 Coax

Image Views:  BNC Female to BNC Female Cable Using RG142 Coax high resolution
Zoom


Click for:PE3088 Datasheet
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.72 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
This item may be subject to an additional Tariff Surcharge of 5.0% each for US customers, which will be applied at checkout.

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1BNC
Connector Gender 1Female
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2BNC
Connector Gender 2Female
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberRG142B/U
RF Cable TypeRG142
RF Cable Impedance50


BNC Female to BNC Female Cable Using RG142 Coax

PE3088 is a BNC female to BNC female cable using RG142 coax. This Pasternack BNC female to BNC female cable assembly uses a 50 Ohm BNC for connector 1 and a 50 Ohm BNC for connector 2.

Our female BNC to female BNC cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3088 BNC female to BNC female cable assembly is constructed with RG142 coax.
