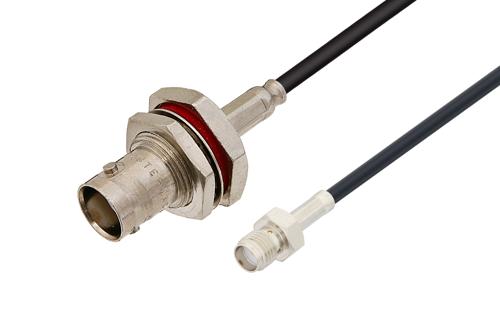

Radio frequency assembly BNC female bulkhead to SMA female cable using RG174 coax from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack coaxial cable assembly products are used in applications requiring high quality, such as laboratory RF test and measurement, rugged and designed for defense/military, telecom antenna tower component jumper connection, production environments, general use, etc. The BNC female bulkhead to SMA female cable using RG174 coax, like our other Pasternack coaxial cable assemblies, will ship the same day, and any custom BNC to SMA cable assembly orders will ship the same business day as well.
Pasternack RF coax cable assembly is built with a BNC bulkhead cable connection on one end and a SMA cable connection on the other. Our BNC to SMA cable assembly has a female gender on end 1 and a female on end 2. PE37457 can also be known as a BNC jack to SMA jack cable assembly and will be shipped the same day as it is purchased. This flexible RF cable assembly with a 0.5-inch diameter has copper clad steel as the cable's inner conducting material and PE dielectric type.
Our PE37457 RF cable has a PVC jacket of 0.110-inch diameter. This radio frequency cable assembly can withstand temperatures ranging from -40 to 80 degrees C. The flexible RF cable has a between series connection. Our bulkhead BNC female to SMA female cable has a maximum VSWR of 1.4:1.
BNC jack to SMA jack cable assembly PE37457 is built with RG174 which is a flexible coax type. The Pasternack flexible BNC cable assembly is manufactured with BNC to SMA cable connectors, has a 50 Ohm impedance, and is single shielded. Both the connectors have a crimp/solder attachment method and a brass body with nickel plating. Additional dimensions, specifications and CAD drawings for this RF cable are available on our downloadable PDF datasheet. PE37457 can also be used in the other direction and will be a SMA female to BNC female bulkhead cable assembly if the opposite connectivity is required.
BNC jack bulkhead to SMA jack cable assembly is just one of more than one million in-stock RF products available. Pasternack is where to buy a high quality BNC to SMA cable assembly for quick shipment worldwide. Variations of BNC and SMA cable assemblies can also be built and will ship on the same day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component interconnection and more for RF test & measurement labs, rugged and MIL-STD designed military/defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For further information on similar products, our expert technical support and trained sales team can get you the ideal BNC to SMA RF cable assembly as per your requirements.
