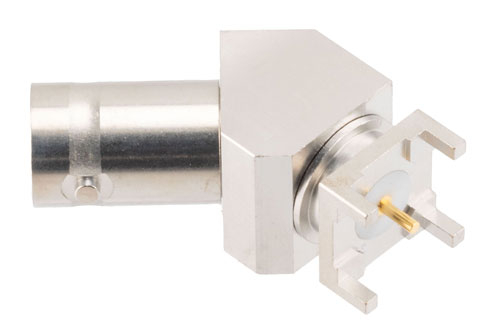

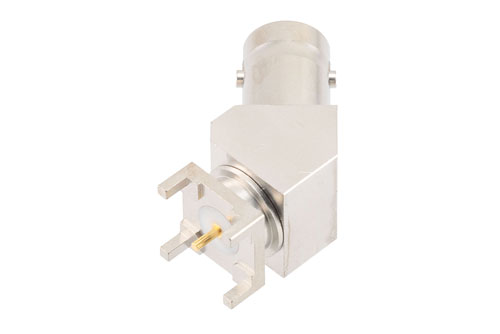

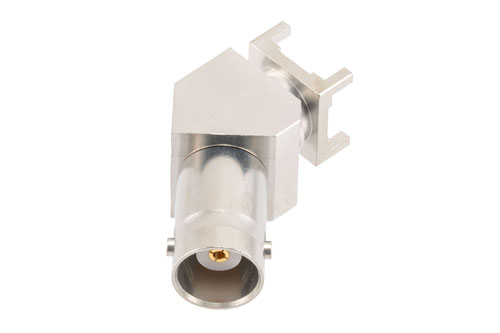

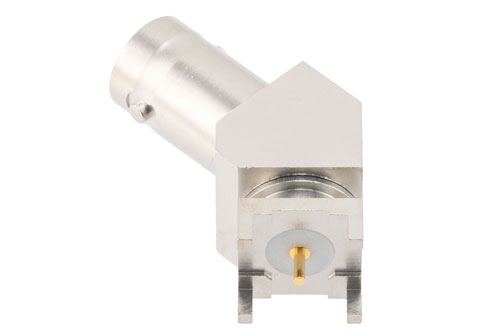

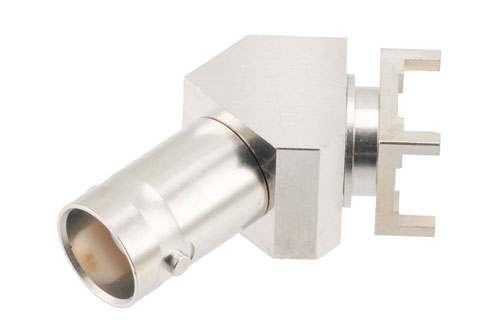

PE46001 BNC female 45 degree PCB RF connector has an impedance of 50 Ohm. Our female BNC 45 degree connector provides a maximum frequency of 4 GHz. This BNC female RF connector is stocked to be readily available for same business day shipment.
The Pasternack 45 degree BNC female PCB connector has a teflon dielectric type and a VSWR of 1.2:1. Pasternack's BNC connector has a brass body with gold over nickel over copper plating. Our PE46001 BNC 45 degree connector uses acopper-tin-zinc alloy-plated beryllium copper contact. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
The radio frequency connector is made from brass material and has a contact life of 500 cycles or more. The PE46001 BNC PCB connector operates at a temperature range of -65 to 165 deg C. This female RF connector has a maximum insertion loss of 0.2 dB. The Pasternack BNC female connector has a dielectric withstanding voltage of 1,500 Vrms.
This Pasternack 45 degree female BNC PCB connector will ship the same business day as purchased. Our PCB BNC 45 degree female connector is part of RF, microwave and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
