MHV to BNC Adapters Standard Polarity

Check out our new RF calculators & conversion tools...

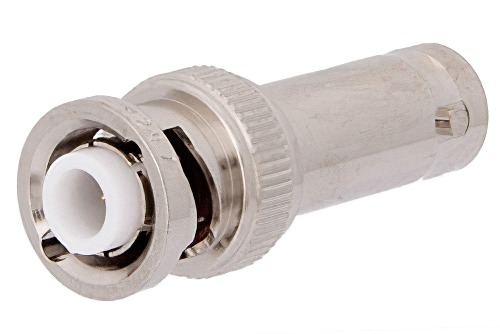

MHV Male to BNC Female Adapter

Product ID: PE9297
MHV Male to BNC Female Adapter

Image Views:  MHV Male to BNC Female Adapter high resolution
Zoom


Click for:PE9297 Datasheet
Click for:PE9297 RoHS Cert
Click for:PE9297 REACH Cert
Available Quantity: 513
Pricing Table
QUANTITYPRICE
1-24$39.93
25-49$37.13
50-99$34.34
100-249$31.94
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1MHV
Connector Gender 1Male
Connector Polarity 1Standard
Connector Impedance 150 Ohm
Connector Series 2BNC
Connector Gender 2Female
Connector Polarity 2Standard
Connector Impedance 250 Ohm
Frequency, MinDC
Frequency, Max300 MHz
Adapter Body StyleStraight
Connector Mount Method 1None
Connector Mount Method 2None
Connector Body Material 2Brass
Connector Body Plating 2Nickel


MHV Male to BNC Female Adapter

MHV adapter PE9297 is one of over 40,000 available RF, microwave and millimeter wave components from Pasternack. Our MHV to BNC adapter is a in-series coaxial adapter design. This 50 Ohm MHV adapter is precision manufactured to RF components industry specifications and has a maximum frequency of 300 MHz.

MHV male to BNC female adapter is one of the many RF components that ship same day as they are ordered. PE9297 male MHV to female BNC adapter has a straight body. This Pasternack straight MHV coax adapter is a in-line RF adapter.

Our male MHV to female BNC adapter PE9297 is shipped from Pasternack's ISO 9001:2008 facility the same day as purchased. This MHV to BNC radio frequency adapter is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
