BNC Female Straight Connectors

Check out our new RF calculators & conversion tools...

BNC Female Connector Crimp/Solder Attachment for RG174, RG316, RG188, LMR-100, PE-B100, PE-C100, 0.100 inch

Product ID: PE4079
BNC Female Connector Crimp/Solder Attachment for RG174, RG316, RG188, LMR-100, PE-B100, PE-C100, 0.100 inch

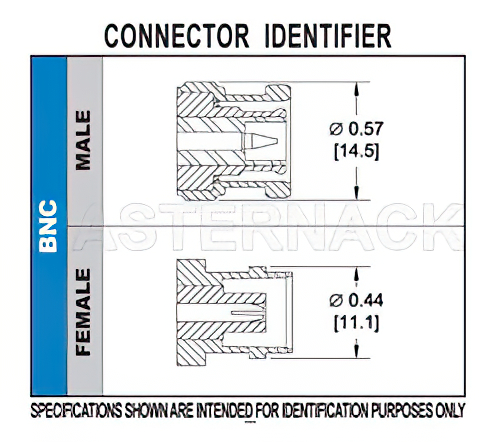

Image Views:  BNC Female Connector Crimp/Solder Attachment for RG174, RG316, RG188, LMR-100, PE-B100, PE-C100, 0.100 inch high resolution
Zoomalternate image
View 2


Click for:PE4079 Datasheet
Click for:PE4079 RoHS Cert
Click for:PE4079 REACH Cert
Available Quantity: 11,555
Pricing Table
QUANTITYPRICE
1-24$13.88
25-49$12.91
50-99$11.94
100-249$11.10
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesBNC
Connector GenderFemale
Impedance50 Ohm
Body StyleStraight
Attachment MethodCrimp/Solder
Mount MethodNone
Minimum FrequencyDC
Maximum Frequency1,000 MHz


BNC Female Connector Crimp/Solder Attachment For RG174, RG316, RG188

PE4079 BNC female coaxial connector has an interface type of RG174, RG316, RG188 and a 50 Ohm impedance. Pasternack BNC female connector uses shield/contact crimp/solder as an attachment method. Our female BNC coaxial connector provides a minimum frequency of DC and a maximum frequency of 1,000 MHz.

The Pasternack BNC female coaxial connector has a teflon dielectric type and a VSWR of 1.5. The Pasternack BNC coaxial connector has a brass body with nickel plating. Our PE4079 BNC connector uses brass contact. This BNC female coaxial RF connector is RoHS and REACH compliant.

This Pasternack female BNC connector will ship the same day as purchased. Our BNC female connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom BNC connector cable assemblies that will ship the same day as well.
