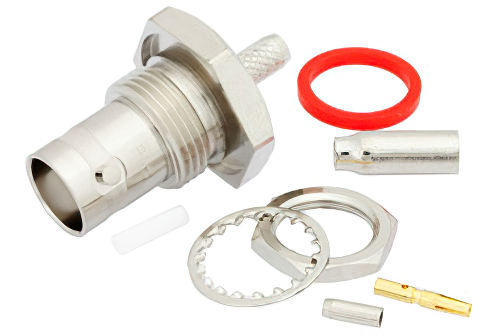

BNC Female Bulkhead Mount Connector Crimp/Solder Attachment for RG174, RG316, RG188, LMR-100, PE-B100, PE-C100, 0.100 inch, .480 inch D Hole

Product ID: PE4106
BNC Female Bulkhead Mount Connector Crimp/Solder Attachment for RG174, RG316, RG188, LMR-100, PE-B100, PE-C100, 0.100 inch, .480 inch D Hole


Image Views:  BNC Female Bulkhead Mount Connector Crimp/Solder Attachment for RG174, RG316, RG188, LMR-100, PE-B100, PE-C100, 0.100 inch, .480 inch D Hole high resolution
Zoomalternate image
View 2


Click for:PE4106 Datasheet
Click for:PE4106 RoHS Cert
Click for:PE4106 REACH Cert
Available Quantity: 3,480
Pricing Table
QUANTITYPRICE
1-24$15.54
25-49$14.76
50-99$13.99
100-249$13.36
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesBNC
Connector GenderFemale
Impedance50 Ohm
Body StyleStraight
Attachment MethodCrimp/Solder
Mount MethodBulkhead
Minimum FrequencyDC
Maximum Frequency1,000 MHz


BNC Female Bulkhead Mount Connector Crimp/Solder Attachment for RG174, RG316, RG188, .480 inch D Hole

PE4106 BNC female bulkhead coaxial connector has an interface type of RG174, RG316, RG188 and a 50 Ohm impedance. Pasternack BNC female bulkhead connector uses shield/contact crimp/solder as an attachment method. Our female BNC coaxial connector provides a minimum frequency of DC and a maximum frequency of 1,000 MHz.

The Pasternack BNC female bulkhead coaxial connector has a ptfe dielectric type and a VSWR of 1.6. The Pasternack BNC coaxial connector has a brass body with nickel plating. Our PE4106 BNC connector uses brass contact. This BNC female bulkhead coaxial RF connector is RoHS and REACH compliant.

This Pasternack female BNC bulkhead connector will ship the same day as purchased. Our bulkhead BNC female connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom BNC connector cable assemblies that will ship the same day as well.
