BNC Female Straight Connectors

Check out our new RF calculators & conversion tools...

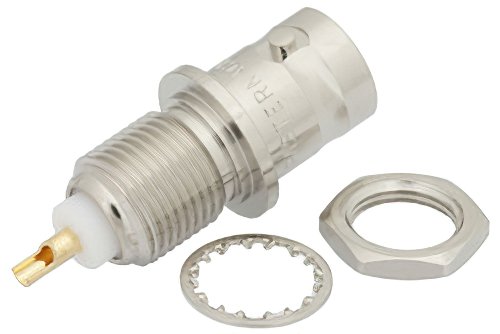

BNC Female Bulkhead Mount Connector Solder Attachment Solder Cup Terminal, .350 inch D Hole

Product ID: PE4015
BNC Female Bulkhead Mount Connector Solder Attachment Solder Cup Terminal, .350 inch D Hole


Image Views:  BNC Female Bulkhead Mount Connector Solder Attachment Solder Cup Terminal, .350 inch D Hole high resolution
Zoomalternate image
View 2


Click for:PE4015 Datasheet
Click for:PE4015 RoHS Cert
Click for:PE4015 REACH Cert
Available Quantity: 1,243
Pricing Table
QUANTITYPRICE
1-24$5.88
25-49$5.47
50-99$5.06
100-249$4.70
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesBNC
Connector GenderFemale
Impedance50 Ohm
Body StyleStraight
Attachment MethodSolder
Mount MethodBulkhead
Minimum FrequencyDC
Maximum Frequency4 GHz


BNC Female Bulkhead Connector Solder Attachment Solder Cup Terminal, .350 inch D Hole

PE4015 BNC female bulkhead terminal connector has an interface type of solder cup and a 50 Ohm impedance. Pasternack BNC female bulkhead connector uses shield/contact solder as an attachment method. Our female BNC terminal connector provides a minimum frequency of DC and a maximum frequency of 4 GHz.

The Pasternack BNC female bulkhead terminal connector has a teflon dielectric type and a VSWR of 1.5. The Pasternack BNC terminal connector has a brass body with nickel plating. Our PE4015 BNC connector uses brass contact. This BNC female bulkhead terminal RF connector is RoHS and REACH compliant.

This Pasternack female BNC bulkhead connector will ship the same day as purchased. Our bulkhead BNC female connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom BNC connector cable assemblies that will ship the same day as well.
