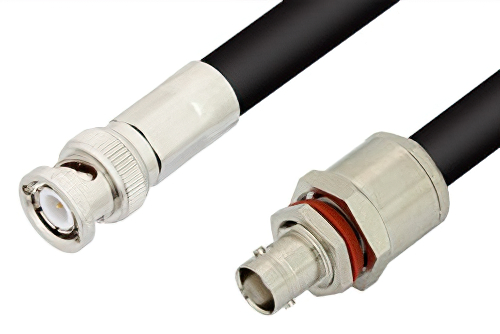

BNC Male to BNC Female Bulkhead Cable Using RG214 Coax

Product ID: PE3427
BNC Male to BNC Female Bulkhead Cable Using RG214 Coax

Image Views:  BNC Male to BNC Female Bulkhead Cable Using RG214 Coax high resolution
Zoom


Click for:PE3427 Datasheet
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.72 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
This item may be subject to an additional Tariff Surcharge of 5.0% each for US customers, which will be applied at checkout.

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1BNC
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2BNC
Connector Gender 2Female
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2Bulkhead
Connector Impedance 250
RF Cable Part NumberRG214/U
RF Cable TypeRG214
RF Cable Impedance50


BNC Male to BNC Female Bulkhead Cable Using RG214 Coax

PE3427 is a BNC male to BNC female bulkhead cable using RG214 coax. This Pasternack BNC male to BNC female bulkhead cable assembly uses a 50 Ohm BNC for connector 1 and a 50 Ohm BNC for connector 2.

Our male BNC to female BNC bulkhead cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3427 BNC male to BNC female bulkhead cable assembly is constructed with RG214 coax.
