BNC Male to BNC Female Cable Using RG316-DS Coax

Product ID: PE37782
BNC Male to BNC Female Cable Using RG316-DS Coax

Image Views:  BNC Male to BNC Female Cable Using RG316-DS Coax high resolution
Zoom


Click for:PE37782 Datasheet
DISCONTINUED PRODUCT
Replaced By: PE3C3521
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.
This item may be subject to an additional Tariff Surcharge of 5.0% each for US customers, which will be applied at checkout.

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1BNC
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2BNC
Connector Gender 2Female
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberRG316-DS
RF Cable TypeRG316-DS
RF Cable Impedance50

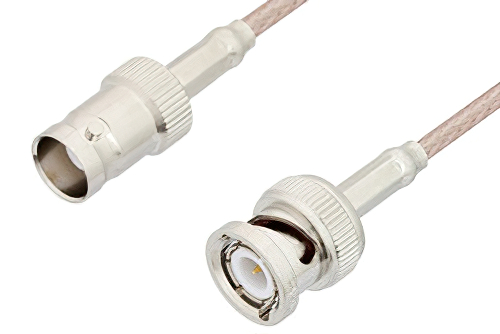

BNC Male to BNC Female Cable Using RG316-DS Coax

PE37782 is a BNC male to BNC female cable using RG316-DS coax. This Pasternack BNC male to BNC female cable assembly uses a 50 Ohm BNC for connector 1 and a 50 Ohm BNC for connector 2.

Our male BNC to female BNC cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE37782 BNC male to BNC female cable assembly is constructed with RG316-DS coax and the maximum VSWR is 1.4:1.
