BNC Male to BNC Female Bulkhead Cable Using RG316 Coax

Product ID: PE3C3446
BNC Male to BNC Female Bulkhead Cable Using RG316 Coax

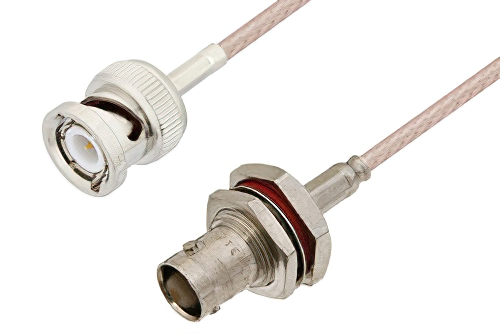

Image Views:  BNC Male to BNC Female Bulkhead Cable Using RG316 Coax high resolution
Zoom


Click for:PE3C3446 Datasheet
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.72 in.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1BNC
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150 Ohm
Connector Series 2BNC
Connector Gender 2Female
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2Bulkhead
Connector Impedance 250 Ohm
RF Cable Part NumberRG316/U
RF Cable TypeRG316
RF Cable Impedance50 Ohm


BNC Male to BNC Female Bulkhead Cable Using RG316 Coax

PE3C3446 is a BNC male to BNC female bulkhead cable using RG316 coax. This Pasternack BNC male to BNC female bulkhead cable assembly uses a 50 Ohm BNC for connector 1 and a 50 Ohm BNC for connector 2.

Our male BNC to female BNC bulkhead cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3C3446 BNC male to BNC female bulkhead cable assembly is constructed with RG316 coax and the maximum VSWR is 1.4:1.
