BNC 75 Ohm to BNC 75 Ohm Adapters Standard Polarity

Check out our new RF calculators & conversion tools...

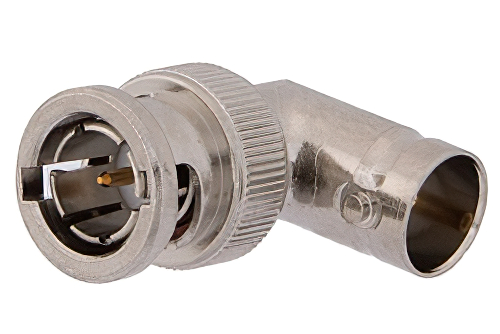

75 Ohm BNC Male to 75 Ohm BNC Female Right Angle Adapter

Product ID: PE9361
75 Ohm BNC Male to 75 Ohm BNC Female Right Angle Adapter

Image Views:  75 Ohm BNC Male to 75 Ohm BNC Female Right Angle Adapter high resolution
Zoom


Click for:PE9361 Datasheet
Available Quantity: 458
Pricing Table
QUANTITYPRICE
1-24$40.26
25-49$38.25
50-99$36.23
100-249$34.62
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1BNC
Connector Gender 1Male
Connector Polarity 1Standard
Connector Impedance 175 Ohm
Connector Series 2BNC
Connector Gender 2Female
Connector Polarity 2Standard
Connector Impedance 275 Ohm
Frequency, MinDC
Frequency, Max4 GHz
Adapter Body StyleRight Angle
Connector Mount Method 1None
Connector Body Material 1Brass
Connector Body Plating 1Nickel
Connector Mount Method 2None


75 Ohm BNC Male to 75 Ohm BNC Female Right Angle Adapter

BNC adapter PE9361 is one of over 40,000 available RF, microwave and millimeter wave components from Pasternack. Our BNC to BNC adapter is a in-series coaxial adapter design. This 75 Ohm BNC adapter is precision manufactured to RF components industry specifications and has a maximum frequency of 4 GHz.

BNC male to BNC female adapter is one of the many RF components that ship same day as they are ordered. PE9361 male BNC to female BNC adapter has a right angle body. This Pasternack right angle BNC coax adapter is a 90 degree right angle RF elbow adapter.

Our male BNC to female BNC adapter PE9361 is shipped from Pasternack's ISO 9001:2008 facility the same day as purchased. This BNC to BNC radio frequency adapter is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
