Reverse Polarity BNC to BNC Standard Polarity Adapters

Check out our new RF calculators & conversion tools...

BNC Male to RP-BNC Female Adapter

Product ID: PE9530

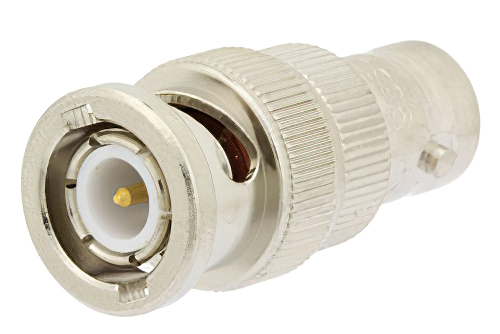

BNC Male to RP-BNC Female Adapter


Image Views:  BNC Male to RP-BNC Female Adapter high resolution
Zoomalternate image

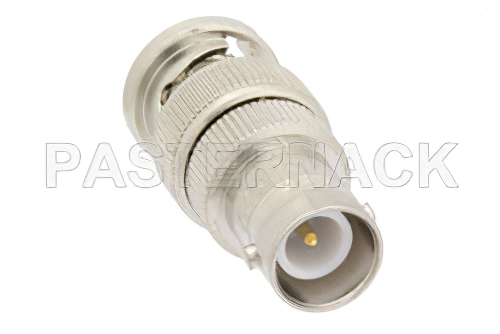

View 2


Click for:PE9530 Datasheet
Click for:PE9530 RoHS Cert
Click for:PE9530 REACH Cert
Available Quantity: 544
Pricing Table
QUANTITYPRICE
1-24$40.77
25-49$37.92
50-99$35.06
100-249$32.62
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1BNC
Connector Gender 1Male
Connector Polarity 1Standard
Connector Impedance 150 Ohm
Connector Series 2BNC
Connector Gender 2Female
Connector Polarity 2Reverse Polarity
Connector Impedance 250 Ohm
Adapter Body StyleStraight
Connector Mount Method 1None
Connector Body Material 1Brass
Connector Body Plating 1Nickel
Connector Mount Method 2None


BNC Male to RP-BNC Female Adapter

BNC adapter PE9530 is one of over 40,000 available RF, microwave and millimeter wave components from Pasternack. Our BNC to BNC adapter is a in-series coaxial adapter design. This 50 Ohm BNC adapter is precision manufactured to RF components industry specifications.

BNC male to reverse polarity BNC female adapter is one of the many RF components that ship same day as they are ordered. PE9530 male BNC to female BNC adapter has a straight body. This Pasternack straight BNC coax adapter is a in-line RF adapter.

Our male BNC to female BNC adapter PE9530 is shipped from Pasternack's ISO 9001:2008 facility the same day as purchased. This BNC to BNC radio frequency adapter is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
