BNC Male to BNC Male Cable Assemblies

Check out our new RF calculators & conversion tools...

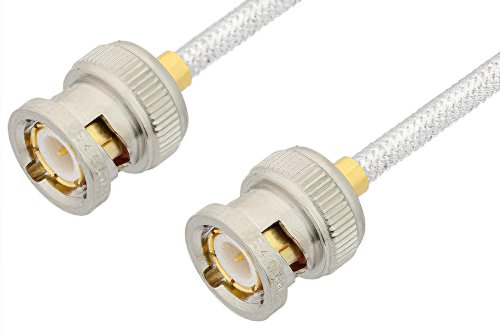

BNC Male to BNC Male Cable Using PE-SR402FL Coax, RoHS

Product ID: PE3462LF
BNC Male to BNC Male Cable Using PE-SR402FL Coax, RoHS

Image Views:  BNC Male to BNC Male Cable Using PE-SR402FL Coax, RoHS high resolution
Zoom


Click for:PE3462LF Datasheet
Please Enter Length to Calculate Price
Standard Lengths
6 in.12 in.18 in.24 in.36 in.48 in.60 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1BNC
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2BNC
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberPE-SR402FL
RF Cable TypePE-SR402FL
RF Cable Impedance50


BNC Male to BNC Male Cable Using PE-SR402FL Coax, RoHS

PE3462LF is a BNC male to BNC male cable using PE-SR402FL coax. This Pasternack BNC male to BNC male cable assembly uses a 50 Ohm BNC for connector 1 and a 50 Ohm BNC for connector 2.

Our male BNC to male BNC cable assembly uses a formable cable type that is 50 Ohm. Pasternack PE3462LF BNC male to BNC male cable assembly is constructed with PE-SR402FL coax and the maximum VSWR is 1.4:1.
