BNC Male to BNC Male Cable Assemblies

Check out our new RF calculators & conversion tools...

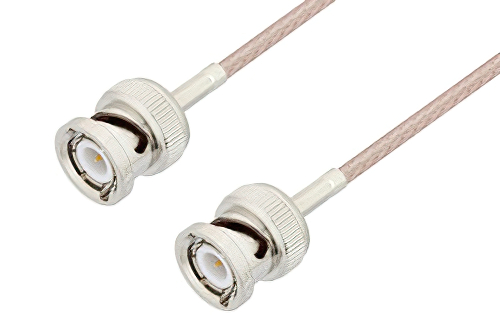

BNC Male to BNC Male Cable Using 75 Ohm RG179 Coax

Product ID: PE3C3349
BNC Male to BNC Male Cable Using 75 Ohm RG179 Coax

Image Views:  BNC Male to BNC Male Cable Using 75 Ohm RG179 Coax high resolution
Zoom


Click for:PE3C3349 Datasheet
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.72 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
This item may be subject to an additional Tariff Surcharge of 5.0% each for US customers, which will be applied at checkout.

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1BNC
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150 Ohm
Connector Series 2BNC
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250 Ohm
RF Cable Part NumberRG179B/U
RF Cable TypeRG179
RF Cable Impedance75 Ohm


BNC Male to BNC Male Cable Using 75 Ohm RG179 Coax

PE3C3349 is a BNC male to BNC male cable using RG179 coax. This Pasternack BNC male to BNC male cable assembly uses a 50 Ohm BNC for connector 1 and a 50 Ohm BNC for connector 2.

Our male BNC to male BNC cable assembly uses a flexible cable type that is 75 Ohm. Pasternack PE3C3349 BNC male to BNC male cable assembly is constructed with RG179 coax and the maximum VSWR is 1.4:1.
