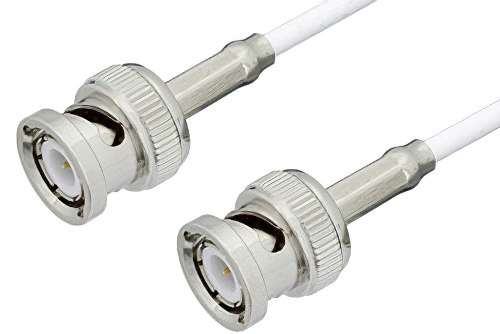

BNC Male to BNC Male Cable Using RG188-DS Coax

Product ID: PE34388
BNC Male to BNC Male Cable Using RG188-DS Coax

Image Views:  BNC Male to BNC Male Cable Using RG188-DS Coax high resolution
Zoom


Click for:PE34388 Datasheet
DISCONTINUED PRODUCT
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1BNC
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2BNC
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberRG188-DS
RF Cable TypeRG188-DS
RF Cable Impedance50


BNC Male to BNC Male Cable Using RG188-DS Coax

PE34388 is a BNC male to BNC male cable using RG188-DS coax. This Pasternack BNC male to BNC male cable assembly uses a 50 Ohm BNC for connector 1 and a 50 Ohm BNC for connector 2.

Our male BNC to male BNC cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE34388 BNC male to BNC male cable assembly is constructed with RG188-DS coax and the maximum VSWR is 1.4:1.
