BNC Male to BNC Male Cable Assemblies

Check out our new RF calculators & conversion tools...

BNC Male to BNC Male Cable Using RG401 Coax

Product ID: PE34170

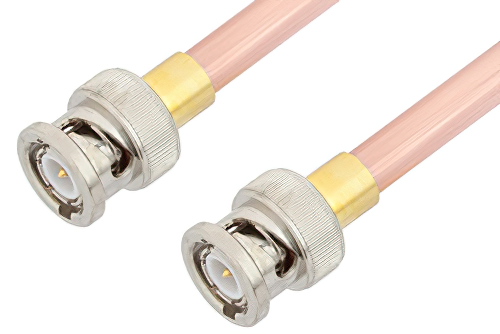

BNC Male to BNC Male Cable Using RG401 Coax

Image Views:  BNC Male to BNC Male Cable Using RG401 Coax high resolution
Zoom


Click for:PE34170 Datasheet
Please Enter Length to Calculate Price
Standard Lengths
6 in.12 in.18 in.24 in.36 in.48 in.60 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1BNC
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2BNC
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberRG401/U
RF Cable TypeRG401
RF Cable Impedance50


BNC Male to BNC Male Cable Using RG401 Coax

PE34170 is a BNC male to BNC male cable using RG401 coax. This Pasternack BNC male to BNC male cable assembly uses a 50 Ohm BNC for connector 1 and a 50 Ohm BNC for connector 2.

Our male BNC to male BNC cable assembly uses a semi-rigid cable type that is 50 Ohm. Pasternack PE34170 BNC male to BNC male cable assembly is constructed with RG401 coax.
