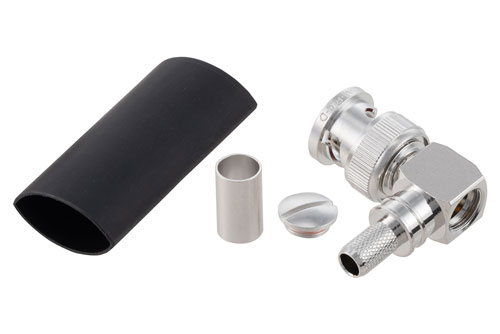

TC-240-BM-RA-D BNC male right angle coaxial connector has an interface type of BNC male LMR-240, LMR-240-DB, LMR-240-UF, LMR-240-FR, RG8X and PE-C240 and a 50 Ohm impedance. Pasternack's BNC male connector uses crimp/solder as an attachment method. Our male BNC right angle coaxial connector provides a maximum frequency of 6 GHz.
The Pasternack right angle BNC male coaxial connector has a PTFE dielectric type and a VSWR of 1.35:1. Pasternack's BNC coaxial connector has a brass body with tri-metal plating. Our TC-240-BM-RA-D BNC right angle connector uses gold over nickel-plated brass contact. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
The radio frequency connector is made from brass material and has a contact life of 500 cycles or more. Our high-quality TC-240-BM-RA-D features an 80 µin minimum body plating specification. The TC-240-BM-RA-D BNC connector operates at a temperature range of -65 to 165 deg C. The Pasternack BNC male connector has a maximum operating voltage of 500 Vrms.
This Pasternack right angle male BNC connector will ship the same business day as purchased. Our BNC right angle male connector is part of RF, microwave and millimeter wave components in stock for worldwide shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
*LMR™ is a Trademark of Times Microwave
