PE4607 BNC male right angle coaxial connector has an interface type of BNC male which is compatible with RG59B/U, RG62 and RG71 cables and has an impedance of 75 Ohms. Pasternack's BNC male connector uses clamp/solder as an attachment method. Our male BNC right angle coaxial connector provides a maximum frequency of 2 GHz. This BNC male RF connector is stocked to be readily available for same business day shipment and can be expertly assembled using our online Cable Creator.
The Pasternack right angle BNC male coaxial connector has a PTFE dielectric type. Pasternack's BNC coaxial connector has a brass body with nickel plating. Our PE4607 BNC right angle connector uses asilver-plated brass contact. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.

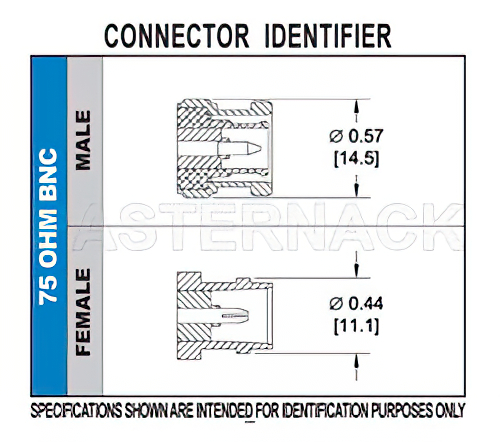

Our high-quality PE4607 features an ASTM-B689 body plating specification. The PE4607 BNC connector operates at a temperature range of -65 to 165 deg C. This right angle BNC connector has a silver inner contact plating. The Pasternack BNC male connector has a maximum operating voltage of 500 Vrms and a dielectric withstanding voltage of 1,500 Vrms. Our right angle BNC male connector has a length of 1.48 inches, a width of 0.57 inches, and a weight of 0.061 lbs.
This Pasternack right angle male BNC connector will ship the same business day as purchased. Our BNC right angle male connector is part of over one million RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
