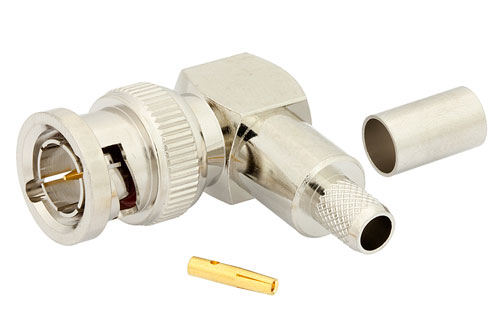

PE4608 BNC male right angle coaxial connector has an interface type of BNC male which is compatible with RG59B/U, RG62 and RG71 cables and has an impedance of 75 Ohms. Pasternack's BNC male connector uses crimp/solder as an attachment method. Our male BNC right angle coaxial connector provides a maximum frequency of 500 MHz. This BNC male RF connector is stocked to be readily available for same business day shipment and can be expertly assembled using our online Cable Creator.
The Pasternack right angle BNC male coaxial connector has a PTFE dielectric type and a VSWR of 1.5:1. Pasternack's BNC coaxial connector has a brass body with nickel plating. Our PE4608 BNC right angle connector uses agold-plated brass contact. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
Our high-quality PE4608 features a 100 µin minimum body plating specification. The PE4608 BNC connector operates at a temperature range of -65 to 165 deg C. This right angle BNC connector has a gold inner contact plating. The Pasternack BNC male connector has a maximum operating voltage of 500 Vrms. Our right angle BNC male connector has a length of 1.138 inches, a width of 0.57 inches, and a weight of 0.054 lbs.
This Pasternack right angle male BNC connector will ship the same business day as purchased. Our BNC right angle male connector is part of over one million RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
