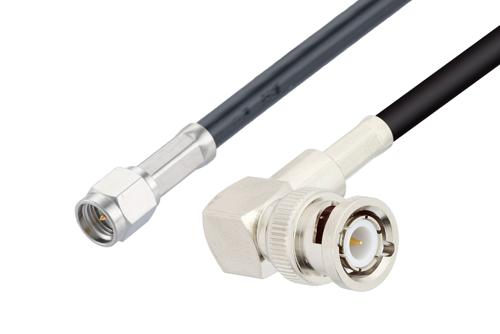

Radio frequency assembly BNC male right angle to SMA male cable using RG58 coax, LF solder from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack coaxial cable assembly products are used in applications requiring high quality, such as laboratory RF test and measurement, rugged and designed for defense/military, telecom antenna tower component jumper connection, production environments, general use, etc. The BNC male right angle to SMA male cable using RG58 coax, LF solder, like our other Pasternack coaxial cable assemblies, will ship the same day, and any custom BNC to SMA cable assembly orders will ship the same business day as well.
Pasternack RF coax cable assembly is built with a right angle BNC cable connection on one end and a SMA cable connection on the other. Our right angle BNC to SMA cable assembly has a male gender on end 1 and a male on end 2. PE33002LF can also be known as a right angle BNC plug to SMA plug cable assembly and will be shipped the same day as it is purchased. This flexible RF cable assembly with a 0.5-inch diameter has copper as the cable's inner conducting material and PE dielectric type.
This cable assembly employs durable and flexible materials, and with a 1.96-inch bend radius, it can withstand repetitive movements, ensuring reliable performance over extended periods. Our PE33002LF RF cable has a PVC (NC) jacket of 0.195-inch diameter. This radio frequency cable assembly can withstand temperatures ranging from -40 to 80 degrees C. The flexible RF cable has a between series connection. Our right angle BNC male to SMA male cable has a maximum VSWR of 1.4:1.
BNC plug to SMA plug cable assembly PE33002LF is built with RG58 which is a flexible coax type. The Pasternack flexible BNC cable assembly is manufactured with right angle BNC to SMA cable connectors, has a 50 Ohm impedance, and is single shielded. One connector features the crimp/crimp attachment method and a brass body with nickel plating, while the other has the crimp/solder attachment method and a brass body with nickel plating. Additional dimensions, specifications and CAD drawings for this RF cable are available on our downloadable PDF datasheet. PE33002LF can also be used in the other direction and will be a SMA male to right angle BNC male cable assembly if the opposite connectivity is required.
BNC right angle plug to SMA plug cable assembly is just one of more than one million in-stock RF products available. Pasternack is where to buy a high quality BNC to SMA cable assembly for quick shipment worldwide. Variations of BNC and SMA cable assemblies can also be built and will ship on the same day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component interconnection and more for RF test & measurement labs, rugged and MIL-STD designed military/defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For further information on similar products, our expert technical support and trained sales team can get you the ideal BNC to SMA RF cable assembly as per your requirements.
