BNC Male to SSMC Plug Cable Using RG316 Coax

Product ID: PE3C4413
BNC Male to SSMC Plug Cable Using RG316 Coax

Image Views:  BNC Male to SSMC Plug Cable Using RG316 Coax high resolution
Zoom


Click for:PE3C4413 Datasheet
Please Enter Length to Calculate Price
Standard Lengths
6 in.12 in.18 in.24 in.36 in.48 in.60 in.72 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1BNC
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150 Ohm
Connector Series 2SSMC
Connector Gender 2Plug
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250 Ohm
RF Cable Part NumberRG316/U
RF Cable TypeRG316
RF Cable Impedance50 Ohm

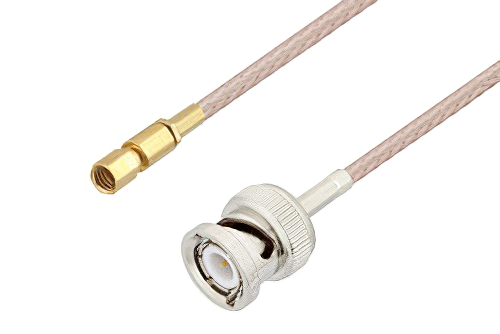

BNC Male to SSMC Plug Cable Using RG316 Coax

PE3C4413 is a BNC male to SSMC plug cable using RG316 coax. This Pasternack BNC male to SSMC plug cable assembly uses a 50 Ohm BNC for connector 1 and a 50 Ohm SSMC for connector 2.

Our male BNC to plug SSMC cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3C4413 BNC male to SSMC plug cable assembly is constructed with RG316 coax and the maximum VSWR is 1.5:1.
