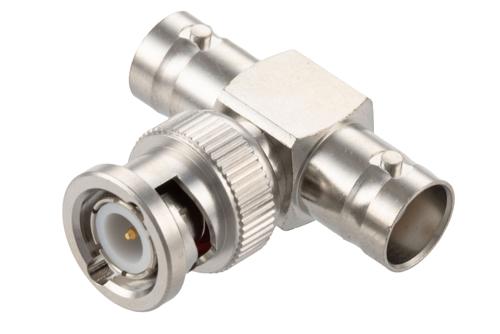

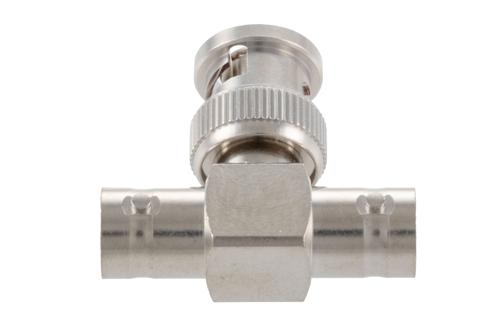

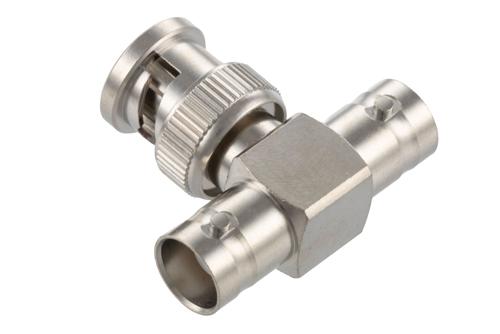

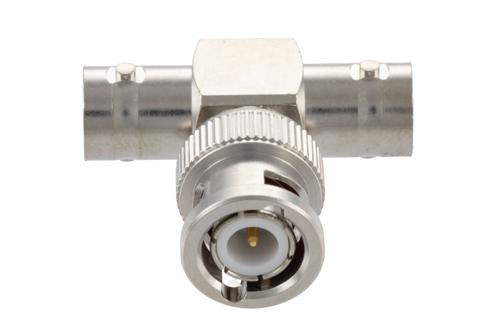

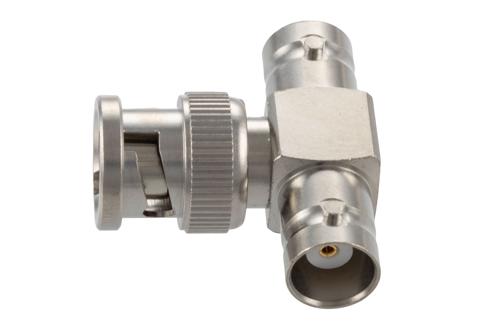

The T-shaped BNC adapter PE910110 is part of our full line of available RF, microwave, and millimeter wave components from Pasternack. Our radio frequency adapter comes with a 50 Ohm impedance and a maximum VSWR of 2:1. This RF adapter has a female-male-female gender configuration, which provides easier connections in tighter spaces. This in-series RF adapter has a dielectric withstanding voltage of 1,500 Vrms.
This BNC female-male-female adapter is one of the many RF components that ship the same business day as they are ordered. The PE910110 BNC adapter has a T-shaped body. This Pasternack T-shaped BNC adapter is also known as a BNC T connector. Our RF adapter has a PTFE insulator material and is often used to enable connections between two connector types that would otherwise not mate. This RF adapter has a 1.28-inch length, 0.571-inch width, and 0.2 lbs weight.
The PE910110 adapter from Pasternack is made from a brass connector body. Our BNC female-male-female T-shaped radio frequency adapter can also be used to protect connectors on expensive equipment where the number of connect/disconnect cycles is high. This RF adapter has an operating temperature range of -65 to 165 degrees C. Additional dimensions and specifications for this in-series adapter are on our downloadable PDF datasheet above.
Pasternack has one of the largest in-stock selections of BNC T-shaped radio frequency adapters for international and domestic orders, including custom cable assemblies. Make your online purchase right now to take advantage of our same-business-day shipping. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the high-quality RF adapter that meets your requirements.
