BNC Twinax to BNC Twinax Adapters Standard Polarity

Check out our new RF calculators & conversion tools...

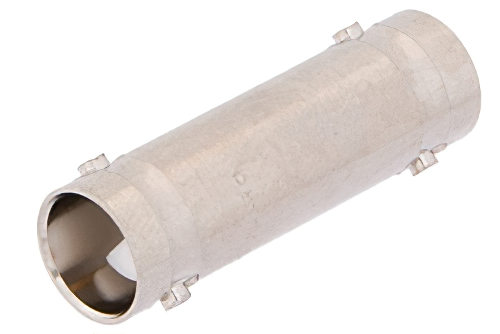

78 Ohm BNC Twinax Jack to 78 Ohm BNC Twinax Jack Adapter

Product ID: PE9378
78 Ohm BNC Twinax Jack to 78 Ohm BNC Twinax Jack Adapter

Image Views:  78 Ohm BNC Twinax Jack to 78 Ohm BNC Twinax Jack Adapter high resolution
Zoom


Click for:PE9378 Datasheet
Click for:PE9378 RoHS Cert
Click for:PE9378 REACH Cert
Available Quantity: 901
Pricing Table
QUANTITYPRICE
1-24$32.59
25-49$30.31
50-99$28.03
100-249$26.07
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1BNC Twinax
Connector Gender 1Jack
Connector Polarity 1Standard
Connector Impedance 178 Ohm
Connector Series 2BNC Twinax
Connector Gender 2Jack
Connector Polarity 2Standard
Connector Impedance 278 Ohm
Frequency, MinDC
Frequency, Max500 MHz
Adapter Body StyleStraight
Connector Mount Method 1None
Connector Mount Method 2None


78 Ohm BNC Twinax Jack to 78 Ohm BNC Twinax Jack Adapter

BNC Twinax adapter PE9378 is one of over 40,000 available RF, microwave and millimeter wave components from Pasternack. Our BNC Twinax to BNC Twinax adapter is a in-series coaxial adapter design. This 78 Ohm BNC Twinax adapter is precision manufactured to RF components industry specifications and has a maximum frequency of 500 MHz.

BNC Twinax jack to BNC Twinax jack adapter is one of the many RF components that ship same day as they are ordered. PE9378 jack BNC Twinax to jack BNC Twinax adapter has a straight body. This Pasternack straight BNC Twinax coax adapter is a in-line RF adapter.

Our jack BNC Twinax to jack BNC Twinax adapter PE9378 is shipped from Pasternack's ISO 9001:2008 facility the same day as purchased. This BNC Twinax to BNC Twinax radio frequency adapter is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
