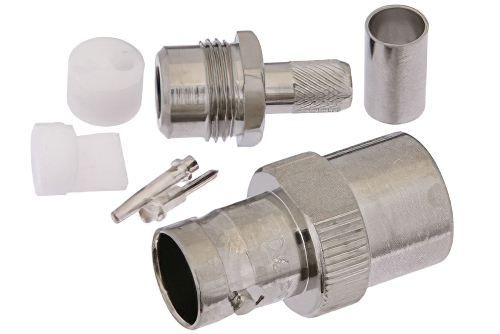

BNC Twinax Jack Connector Crimp/Solder Attachment for RG108, 78 Ohm Twinax

Product ID: PE4235
BNC Twinax Jack Connector Crimp/Solder Attachment for RG108, 78 Ohm Twinax


Image Views:  BNC Twinax Jack Connector Crimp/Solder Attachment for RG108, 78 Ohm Twinax high resolution
Zoomalternate image

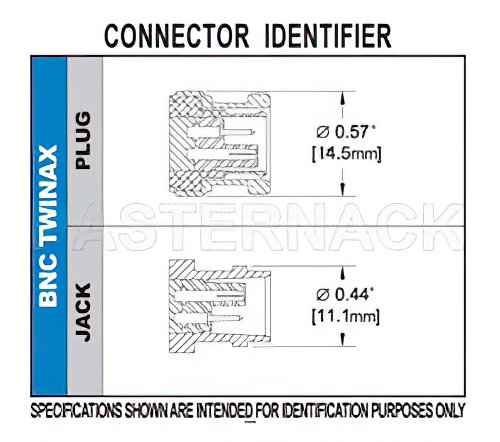

View 2


Click for:PE4235 Datasheet
Click for:PE4235 RoHS Cert
Click for:PE4235 REACH Cert
Available Quantity: 109
Pricing Table
QUANTITYPRICE
1-24$32.59
25-49$30.31
50-99$28.03
100-249$26.07
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesBNC Twinax
Connector GenderJack
Impedance78 Ohm
Body StyleStraight
Attachment MethodCrimp/Solder
Mount MethodNone


BNC Twinax Jack Connector Crimp/Solder Attachment For RG108, 78 Ohm Twinax

PE4235 BNC Twinax jack coaxial connector has an interface type of RG108, 78 Ohm Twinax and a 78 Ohm impedance. Pasternack BNC Twinax jack connector uses shield/contact crimp/solder as an attachment method.

The Pasternack BNC Twinax jack coaxial connector has a teflon dielectric type. The Pasternack BNC Twinax coaxial connector has a brass body with nickel plating. This BNC Twinax jack coaxial RF connector is RoHS and REACH compliant.

This Pasternack jack BNC Twinax connector will ship the same day as purchased. Our BNC Twinax jack connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom BNC Twinax connector cable assemblies that will ship the same day as well.
