BNC Twinax Jack Straight Connectors

Check out our new RF calculators & conversion tools...

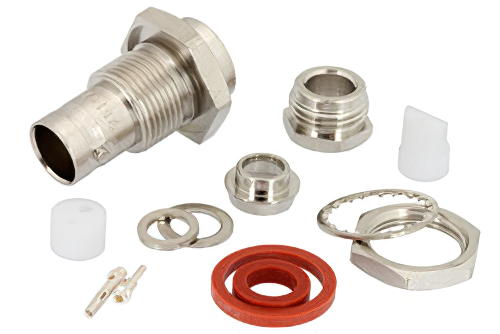

BNC Twinax Jack Bulkhead Mount Connector Clamp/Solder Attachment for RG108, 78 Ohm Twinax, .480 inch D Hole

Product ID: PE44114
BNC Twinax Jack Bulkhead Mount Connector Clamp/Solder Attachment for RG108, 78 Ohm Twinax, .480 inch D Hole


Image Views:  BNC Twinax Jack Bulkhead Mount Connector Clamp/Solder Attachment for RG108, 78 Ohm Twinax, .480 inch D Hole high resolution
Zoomalternate image
View 2


Click for:PE44114 Datasheet
Click for:PE44114 RoHS Cert
Click for:PE44114 REACH Cert
Available Quantity: 144
Pricing Table
QUANTITYPRICE
1-24$42.25
25-49$39.29
50-99$36.34
100-249$33.80
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesBNC Twinax
Connector GenderJack
Impedance78 Ohm
Body StyleStraight
Attachment MethodClamp/Solder
Mount MethodBulkhead


BNC Twinax Jack Bulkhead Connector Clamp/Solder Attachment For RG108, 78 Ohm Twinax, .480 inch D Hole

PE44114 BNC Twinax jack bulkhead coaxial connector has an interface type of RG108, 78 Ohm Twinax and a 78 Ohm impedance. Pasternack BNC Twinax jack bulkhead connector uses shield/contact clamp/solder as an attachment method.

The Pasternack BNC Twinax jack bulkhead coaxial connector has a ptfe dielectric type. The Pasternack BNC Twinax coaxial connector has a brass body with nickel plating. This BNC Twinax jack bulkhead coaxial RF connector is RoHS and REACH compliant.

This Pasternack jack BNC Twinax bulkhead connector will ship the same day as purchased. Our bulkhead BNC Twinax jack connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom BNC Twinax connector cable assemblies that will ship the same day as well.
