BNC Twinax Jack Straight Connectors

Check out our new RF calculators & conversion tools...

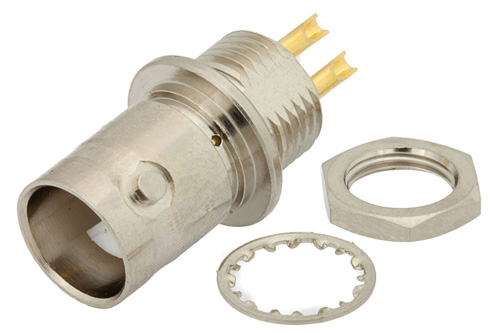

BNC Twinax Jack Bulkhead Mount Connector Solder Attachment Solder Cup Terminal, .350 inch D Hole

Product ID: PE4238
BNC Twinax Jack Bulkhead Mount Connector Solder Attachment Solder Cup Terminal, .350 inch D Hole


Image Views:  BNC Twinax Jack Bulkhead Mount Connector Solder Attachment Solder Cup Terminal, .350 inch D Hole high resolution
Zoomalternate image
View 2


Click for:PE4238 Datasheet
Click for:PE4238 RoHS Cert
Click for:PE4238 REACH Cert
Available Quantity: 2,533
Pricing Table
QUANTITYPRICE
1-24$17.17
25-49$15.97
50-99$14.77
100-249$13.74
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesBNC Twinax
Connector GenderJack
Impedance78 Ohm
Body StyleStraight
Attachment MethodSolder
Mount MethodBulkhead


BNC Twinax Jack Bulkhead Connector Solder Attachment Solder Cup Terminal, .350 inch D Hole

PE4238 BNC Twinax jack bulkhead terminal connector has an interface type of solder cup and a 78 Ohm impedance. Pasternack BNC Twinax jack bulkhead connector uses shield/contact solder as an attachment method.

The Pasternack BNC Twinax jack bulkhead terminal connector has a teflon dielectric type. The Pasternack BNC Twinax terminal connector has a brass body with nickel plating. Our PE4238 BNC Twinax connector uses brass contact. This BNC Twinax jack bulkhead terminal RF connector is RoHS and REACH compliant.

This Pasternack jack BNC Twinax bulkhead connector will ship the same day as purchased. Our bulkhead BNC Twinax jack connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom BNC Twinax connector cable assemblies that will ship the same day as well.
