BNC Twinax to BNC Twinax Adapters Standard Polarity

Check out our new RF calculators & conversion tools...

78 Ohm BNC Twinax Plug to 78 Ohm BNC Twinax Jack Right Angle Adapter

Product ID: PE9377

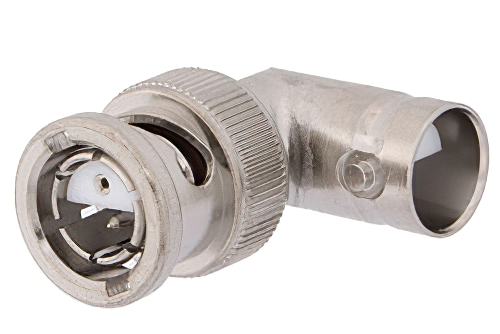

78 Ohm BNC Twinax Plug to 78 Ohm BNC Twinax Jack Right Angle Adapter

Image Views:  78 Ohm BNC Twinax Plug to 78 Ohm BNC Twinax Jack Right Angle Adapter high resolution
Zoom


Click for:PE9377 Datasheet
Click for:PE9377 RoHS Cert
Click for:PE9377 REACH Cert
Available Quantity: 146
Pricing Table
QUANTITYPRICE
1-24$64.27
25-49$59.77
50-99$55.27
100-249$51.42
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1BNC Twinax
Connector Gender 1Plug
Connector Polarity 1Standard
Connector Impedance 178 Ohm
Connector Series 2BNC Twinax
Connector Gender 2Jack
Connector Polarity 2Standard
Connector Impedance 278 Ohm
Adapter Body StyleRight Angle
Connector Mount Method 1None
Connector Body Material 1Brass
Connector Body Plating 1Nickel
Connector Mount Method 2None


78 Ohm BNC Twinax Plug to 78 Ohm BNC Twinax Jack Right Angle Adapter

BNC Twinax adapter PE9377 is one of over 40,000 available RF, microwave and millimeter wave components from Pasternack. Our BNC Twinax to BNC Twinax adapter is a in-series coaxial adapter design. This 78 Ohm BNC Twinax adapter is precision manufactured to RF components industry specifications.

BNC Twinax plug to BNC Twinax jack adapter is one of the many RF components that ship same day as they are ordered. PE9377 plug BNC Twinax to jack BNC Twinax adapter has a right angle body. This Pasternack right angle BNC Twinax coax adapter is a 90 degree right angle RF elbow adapter.

Our plug BNC Twinax to jack BNC Twinax adapter PE9377 is shipped from Pasternack's ISO 9001:2008 facility the same day as purchased. This BNC Twinax to BNC Twinax radio frequency adapter is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
