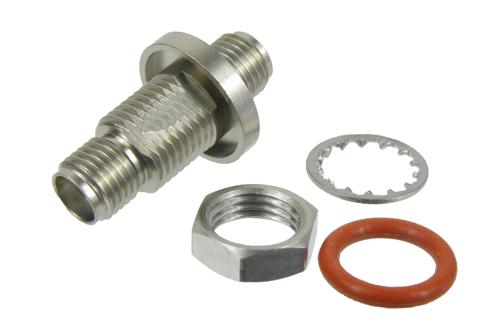

The SMA adapter PE910044 is part of our full line of available RF, microwave, and millimeter wave components from Pasternack. Our radio frequency adapter comes with a 50 Ohm impedance and a maximum VSWR of 1.35:1. This hermetically sealed RF adapter has a female to female gender configuration, which provides easier connections in tighter spaces. Our SMA bulkhead to SMA adapter is precision manufactured to RF component industry specifications and has a maximum frequency of 27 GHz. This in-series RF adapter has a dielectric withstanding voltage of 1,000 Vrms.
This SMA bulkhead female to SMA female adapter is one of the many RF components that ship the same business day as they are ordered. The PE910044 female SMA to female SMA adapter has a straight body. Our hermetically sealed RF adapter is often used to enable connections between two connector types that would otherwise not mate. This RF adapter has a 0.875-inch length, 0.5-inch width, and 0.015 lbs weight.
The PE910044 adapter from Pasternack has a gold-plated beryllium copper center contact. Our SMA female to SMA female radio frequency adapter can also be used to protect connectors on expensive equipment where the number of connect/disconnect cycles is high. This RF adapter has an operating temperature range of -65 to 165 degrees C. Our hermetically sealed RF adapter prevents the leakage of gases, making it suitable for high-pressure or vacuum applications or whenever an airtight seal is required. Additional dimensions and specifications for this in-series adapter are on our downloadable PDF datasheet above.
Pasternack has one of the largest in-stock selections of SMA to SMA radio frequency adapters for international and domestic orders, including custom cable assemblies. Make your online purchase right now to take advantage of our same-business-day shipping. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the high-quality 27 GHz RF adapter that meets your requirements.
