C Male Straight Connectors

Check out our new RF calculators & conversion tools...

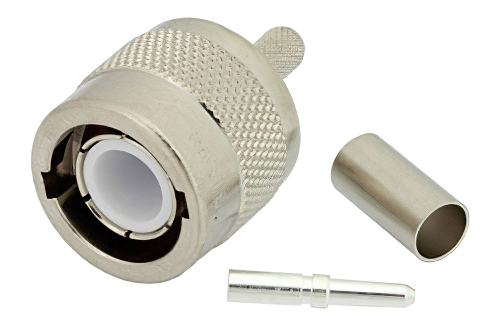

C Male Connector Crimp/Solder Attachment for RG58, RG303, RG141, PE-C195, PE-P195, LMR-195, 0.195 inch

Product ID: PE4517
C Male Connector Crimp/Solder Attachment for RG58, RG303, RG141, PE-C195, PE-P195, LMR-195, 0.195 inch


Image Views:  C Male Connector Crimp/Solder Attachment for RG58, RG303, RG141, PE-C195, PE-P195, LMR-195, 0.195 inch high resolution
Zoomalternate image
View 2


Click for:PE4517 Datasheet
Click for:PE4517 RoHS Cert
Click for:PE4517 REACH Cert
Available Quantity: 2,433
Pricing Table
QUANTITYPRICE
1-24$34.30
25-49$31.90
50-99$29.50
100-249$27.44
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesC
Connector GenderMale
Impedance50 Ohm
Body StyleStraight
Attachment MethodCrimp/Solder
Mount MethodNone
Minimum FrequencyDC
Maximum Frequency3 GHz


C Male Connector Crimp/Solder Attachment for RG58

PE4517 type C male coaxial connector has an interface type of RG58 and a 50 Ohm impedance. Pasternack type C male connector uses shield/contact crimp/solder as an attachment method. Our male type C coaxial connector provides a minimum frequency of DC and a maximum frequency of 3 GHz.

The Pasternack C type male coaxial connector has a teflon dielectric type and a VSWR of 1.3. The Pasternack C type coaxial connector has a brass body with nickel plating. Our PE4517 C type connector uses brass contact. This type C male coaxial RF connector is RoHS and REACH compliant.

This Pasternack male C type connector will ship the same day as purchased. Our type C male connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom type C connector cable assemblies that will ship the same day as well.
