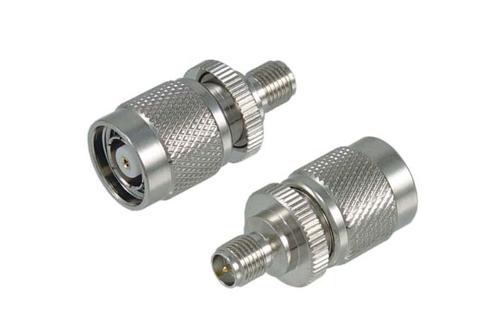

The commercial grade SMA to TNC adapter PE910065 is part of our full line of available RF, microwave, and millimeter wave components from Pasternack. Our radio frequency adapter comes with a 50 Ohm impedance. This RF adapter has a jack to plug gender configuration, which provides easier connections in tighter spaces. Our reverse polarity SMA to reverse polarity TNC adapter is precision manufactured to RF component industry specifications and has a maximum frequency of 11 GHz. This commercial grade between series RF adapter has a dielectric withstanding voltage of 1,000 Vrms.
This SMA reverse polarity jack to TNC reverse polarity plug adapter is one of the many RF components that ship the same business day as they are ordered. The PE910065 jack SMA to plug TNC adapter has a straight body. This Pasternack SMA to TNC coax adapter is an in-line RF adapter in a commercial grade design. Our RF adapter is often used to enable connections between two connector types that would otherwise not mate. Our adapter has a maximum insertion loss of 0.15 dB. This commercial grade RF adapter has a 1.153-inch length, 0.571-inch width, and 0.02 lbs weight.
The PE910065 adapter from Pasternack is made from a brass connector body and has a brass center contact. Our SMA reverse polarity jack to TNC reverse polarity plug radio frequency adapter can also be used to protect connectors on expensive equipment where the number of connect/disconnect cycles is high. This commercial grade RF adapter has an operating temperature range of -55 to 85 degrees C. Additional dimensions and specifications for this between series adapter are on our downloadable PDF datasheet above.
Pasternack has one of the largest in-stock selections of reverse polarity SMA to reverse polarity TNC radio frequency commercial grade adapters for international and domestic orders, including custom cable assemblies. Make your online purchase right now to take advantage of our same-business-day shipping. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the high-quality 11 GHz RF adapter that meets your requirements.
