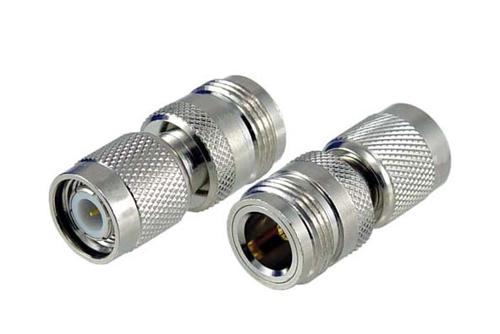

The commercial grade TNC to type N adapter PE910053 is part of our full line of available RF, microwave, and millimeter wave components from Pasternack. Our radio frequency adapter comes with a 50 Ohm impedance. This RF adapter has a male to female gender configuration, which provides easier connections in tighter spaces. Our TNC to type N adapter is precision manufactured to RF component industry specifications and has a maximum frequency of 11 GHz. This commercial grade between series RF adapter has a dielectric withstanding voltage of 1,000 Vrms.
This TNC male to type N female adapter is one of the many RF components that ship the same business day as they are ordered. The PE910053 male TNC to female type N adapter has a straight body. This Pasternack TNC to type N coax adapter is an in-line RF adapter in a commercial grade design. Our RF adapter is often used to enable connections between two connector types that would otherwise not mate. Our adapter has a maximum insertion loss of 0.15 dB. This commercial grade RF adapter has a 1.323-inch length, 0.628-inch width, and 0.02 lbs weight.
The PE910053 adapter from Pasternack is made from a brass connector body and has a brass center contact. Our TNC male to type N female radio frequency adapter can also be used to protect connectors on expensive equipment where the number of connect/disconnect cycles is high. This commercial grade RF adapter has an operating temperature range of -55 to 85 degrees C. Additional dimensions and specifications for this between series adapter are on our downloadable PDF datasheet above.
Pasternack has one of the largest in-stock selections of TNC to type N radio frequency commercial grade adapters for international and domestic orders, including custom cable assemblies. Make your online purchase right now to take advantage of our same-business-day shipping. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the high-quality 11 GHz RF adapter that meets your requirements.
