D-Sub Plug Straight Connectors

Check out our new RF calculators & conversion tools...

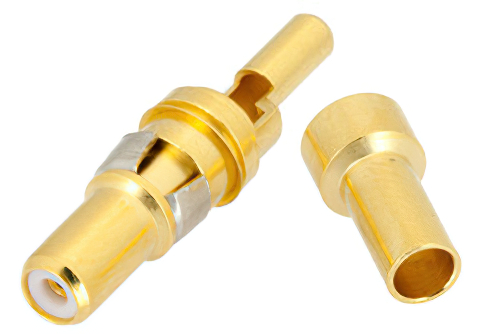

D-Sub Plug Contact Crimp/Solder Attachment for RG174, RG316, RG188, 0.100 inch, PE-B100, PE-C100, LMR-100

Product ID: PE4809
D-Sub Plug Contact Crimp/Solder Attachment for RG174, RG316, RG188, 0.100 inch, PE-B100, PE-C100, LMR-100


Image Views:  D-Sub Plug Contact Crimp/Solder Attachment for RG174, RG316, RG188, 0.100 inch, PE-B100, PE-C100, LMR-100 high resolution
Zoomalternate image
View 2


Click for:PE4809 Datasheet
Click for:PE4809 REACH Cert
Available Quantity: 501
Pricing Table
QUANTITYPRICE
1-24$23.46
25-49$22.29
50-99$21.11
100-249$20.18
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesD-Sub
Connector GenderPlug
Impedance50 Ohm
Body StyleStraight
Attachment MethodCrimp/Solder
Mount MethodNone
Minimum FrequencyDC
Maximum Frequency900 MHz


D-Sub Plug Contact Crimp/Solder Attachment For RG174, RG316, RG187, RG188

PE4809 D-Sub plug coaxial connector has an interface type of RG174, RG316, RG187, RG188 and a 50 Ohm impedance. Pasternack D-Sub plug connector uses shield/contact crimp/solder as an attachment method. Our plug D-Sub coaxial connector provides a minimum frequency of DC and a maximum frequency of 900 MHz.

The Pasternack D-Sub plug coaxial connector has a teflon dielectric type. The Pasternack D-Sub coaxial connector has a brass body with gold plating. Our PE4809 D-Sub connector uses beryllium copper contact. This D-Sub plug coaxial RF connector is RoHS and REACH compliant.

This Pasternack plug D-Sub connector will ship the same day as purchased. Our D-Sub plug connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom D-Sub connector cable assemblies that will ship the same day as well.
