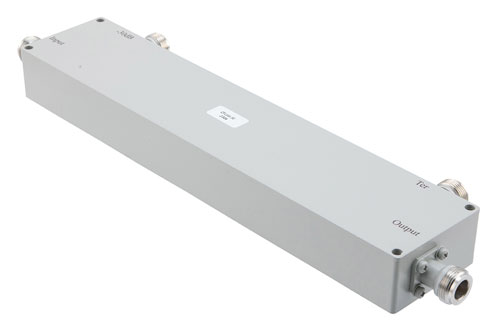

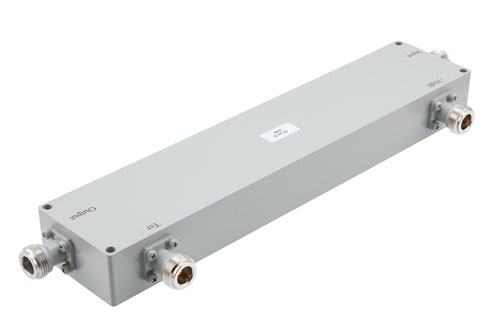

Directional 30 dB N Coupler from 500 MHz to 1000 MHz Rated to 500 Watts
Product ID:
PE2CP1144-30
Pricing
Quantity | Price |
1-4 | $827.64 |
5-9 | $786.26 |
10-24 | $744.88 |
25+ | Call Us |
* All Prices are in US Dollars and do not include duties
Buy
Available Quantity: 8

Same-Day Shipping!
Order in the next hours!
* All Prices are in US Dollars and do not include duties
Key Specifications
Key Specifications. |
Directionality |
Directional |
Connector Series |
N |
Connector Gender |
Female |
Minimum Frequency |
500 MHz |
Maximum Frequency |
1 GHz |
Maximum Input Power |
500 Watt |
Coupling Value |
30 dB |
Description
Directional 30 dB N Coupler from 500 MHz to 1 GHz Rated to 500 Watts
RF coupler part number PE2CP1144-30 from Pasternack is one of over 40,000 RF components available for same day shipping worldwide. This RF coupler is directional and is manufactured with type N ports. Our directional coupler design uses type N ports that are female gender and 50 Ohm impedance.
The Pasternack directional coupler design is rated for a minimum frequency of 500 MHz and a maximum frequency of 1 GHz. Directional coupler part # PE2CP1144-30 is constructed with a coupling value of 30 dB and a coupler directivity of 20 dB. This female type N directional coupler is built with a maximum insertion loss of 0.3 dB and a maximum input power of 500 watts.
Our directional coupler design with type N connector is rated for a maximum insertion loss of 0.3 dB and a maximum VSWR of 1.12:1 Additional female N type coupler specs for this RF component can be found on its radio frequency directional coupler PDF specifications datasheet above. PE2CP1144-30 directional 30 dB type N coupler is one of over 40,000 RF, microwave and millimeter wave components supplied by Pasternack and it can be bought and then shipped worldwide the same-day as with Pasternack's other in-stock RF parts.
Tariff Surcharge
Section 301 USTR Import Tariff related to this product. This product may have a surcharge if the product is shipped to an address within the United States. This surcharge will be finalized after the Shipping Address information is entered on the Check Out page.
