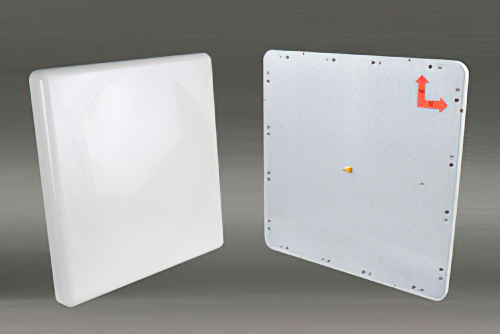

Panel Antenna Operates from 5.725 GHz to 5.85 GHz with a 22 dBi Minimum Gain SMA Female Input Connector Rated

Product ID: PE51052
Panel Antenna Operates from 5.725 GHz to 5.85 GHz with a 22 dBi Minimum Gain SMA Female Input Connector Rated

Image Views:  Panel Antenna Operates from 5.725 GHz to 5.85 GHz with a 22 dBi Minimum Gain SMA Female Input Connector Rated high resolution
Zoom


Click for:PE51052 Datasheet
Click for:PE51052 RoHS Cert
Available Quantity: 8
Pricing Table
QUANTITYPRICE
1-24$138.71
25-49$129.00
50-99$119.29
100-249$110.97
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Antenna TypePanel
PolarizationVertical or Horizontal
Minimum Frequency5.725 GHz
Maximum Frequency5.85 GHz
Connector SeriesSMA
Connector GenderFemale
Impedance50 Ohm
Nominal Gain22 dB
Maximum Input VSWR1.5:1


Panel Antenna Operates From 5.725 GHz to 5.85 GHz With a Nominal 22 dBi Gain SMA Female Input Connector

Panel antenna PE51052 from Pasternack (sometimes known as a patch antenna) is part of our extensive in-stock RF directional antenna selection. This single band panel / patch antenna has a frequency range of 5.725 GHz to 5.85 GHz and a 22 nominal dBi gain. Our patch panel antenna uses SMA female connector and is rated for 20 Watts input.

PE51052 radio frequency panel / patch antenna is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our panel aerial can ship worldwide the same day of the purchase as with our other available RF parts.
