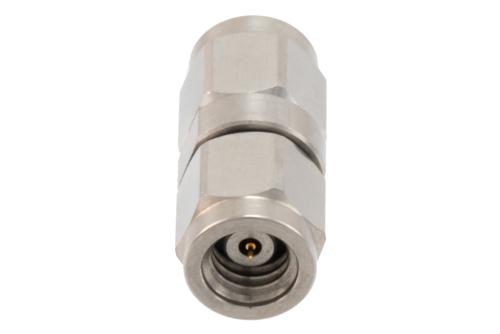

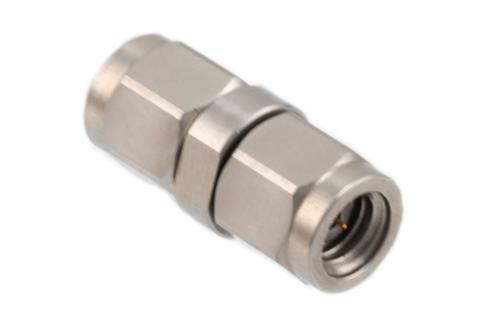

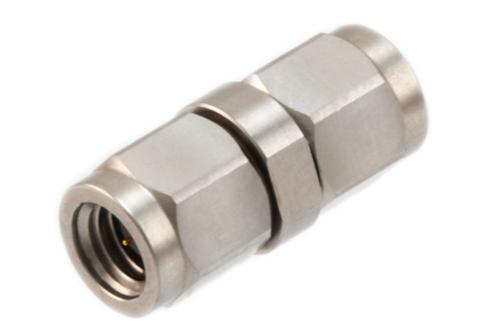

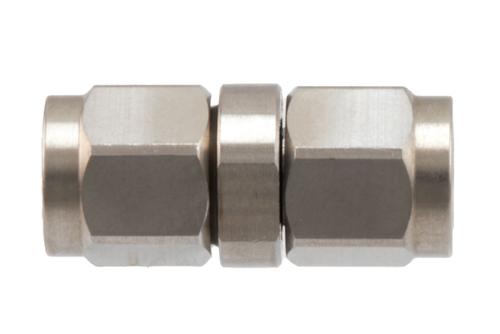

The engineering grade 1.0mm adapter PE910018 is part of our full line of available RF, microwave, and millimeter wave components from Pasternack. Our radio frequency adapter comes with a 50 Ohm impedance. This RF adapter has a male to male gender configuration, which provides easier connections in tighter spaces. The 1.0mm to 1.0mm adapter is an engineering grade adapter designed for repeated use in prototyping and lab applications for RF and microwave systems without performance degradation. Our 1.0mm to 1.0mm adapter is precision manufactured to RF component industry specifications and has a maximum frequency of 110 GHz. This engineering grade RF adapter has a dielectric withstanding voltage of 500 Vrms.
This 1.0mm male to 1.0mm male adapter is one of the many RF components that ship the same business day as they are ordered. Our RF adapter is often used to enable connections between two connector types that would otherwise not mate. Pasternack’s PE910018 radio frequency adapter has a typical VSWR of 1.3:1. Our adapter has a maximum insertion loss of 0.839 dB. This engineering grade RF adapter has a 0.264-inch length, 0.264-inch width, and 0.08 lbs weight.
The PE910018 adapter from Pasternack is made from a passivated stainless steel connector body and has a beryllium copper center contact. Our 1.0mm male to 1.0mm male radio frequency adapter can also be used to protect connectors on expensive equipment where the number of connect/disconnect cycles is high. This engineering grade RF adapter has an operating temperature range of -65 to 165 degrees C. Additional dimensions and specifications for this adapter are on our downloadable PDF datasheet above.
Pasternack has one of the largest in-stock selections of 1.0mm to 1.0mm radio frequency engineering grade adapters for international and domestic orders, including custom cable assemblies. Make your online purchase right now to take advantage of our same-business-day shipping. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the high-quality 110 GHz RF adapter that meets your requirements.
