Type F 75 Ohm to BNC Adapters Standard Polarity

Check out our new RF calculators & conversion tools...

50 Ohm BNC Male to 75 Ohm F Male Adapter

Product ID: PE9152

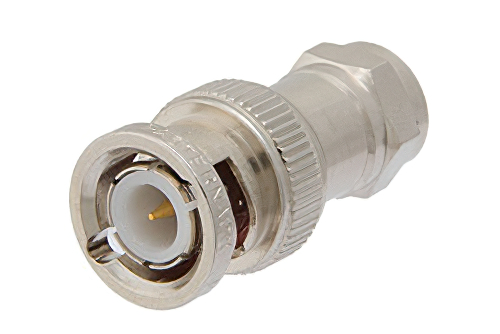

50 Ohm BNC Male to 75 Ohm F Male Adapter

Image Views:  50 Ohm BNC Male to 75 Ohm F Male Adapter high resolution
Zoom


Click for:PE9152 Datasheet
Click for:PE9152 RoHS Cert
Click for:PE9152 REACH Cert
Available Quantity: 3,245
Pricing Table
QUANTITYPRICE
1-24$19.12
25-49$17.78
50-99$16.44
100-249$15.30
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1BNC
Connector Gender 1Male
Connector Polarity 1Standard
Connector Impedance 150 Ohm
Connector Series 2F
Connector Gender 2Male
Connector Polarity 2Standard
Connector Impedance 275 Ohm
Adapter Body StyleStraight
Connector Mount Method 1None
Connector Body Material 1Brass
Connector Body Plating 1Nickel
Connector Mount Method 2None
Connector Body Material 2Brass
Connector Body Plating 2Nickel


50 Ohm BNC Male to 75 Ohm F Male Adapter

BNC adapter PE9152 is one of over 40,000 available RF, microwave and millimeter wave components from Pasternack. Our BNC to type F adapter is a between series coaxial adapter design. This 50 Ohm to 75 Ohm BNC adapter is precision manufactured to RF components industry specifications.

BNC male to F type male adapter is one of the many RF components that ship same day as they are ordered. PE9152 male BNC to male type F adapter has a straight body. This Pasternack straight BNC coax adapter is a in-line RF adapter.

Our male BNC to male type F adapter PE9152 is shipped from Pasternack's ISO 9001:2008 facility the same day as purchased. This BNC to F type radio frequency adapter is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
