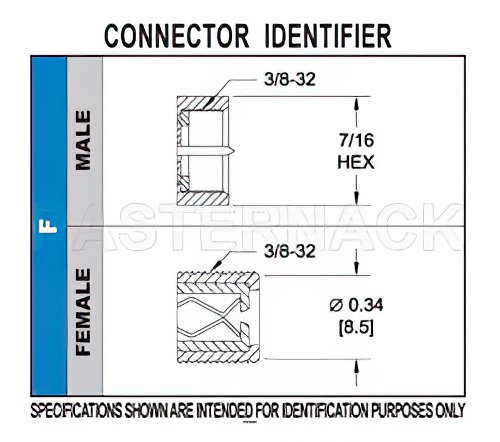

PE44322 type F male right angle coaxial connector has an interface type of type F male which is compatible with RG59B/U, RG62 and RG71 cables and has an impedance of 75 Ohms. Pasternack's type F male connector uses crimp/solder as an attachment method. Our male type F right angle coaxial connector provides a maximum frequency of 1 GHz. This type F male RF connector is stocked to be readily available for same business day shipment and can be expertly assembled using our online Cable Creator.
The Pasternack right angle type F male coaxial connector has a PTFE dielectric type and a VSWR of 1.3:1. Pasternack's type F coaxial connector has a brass body with nickel plating. Our PE44322 type F right angle connector uses agold-plated brass contact. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
Our high-quality PE44322 features a 100 µin minimum body plating specification. The PE44322 type F connector operates at a temperature range of -40 to 85 deg C. This right angle type F connector has a gold inner contact plating. The Pasternack type F male connector has a maximum operating voltage of 500 Vrms and a dielectric withstanding voltage of 1,500 Vrms. Our right angle type F male connector has a length of 0.94 inches, a width of 0.433 inches, and a weight of 0.027 lbs.
This Pasternack right angle male type F connector will ship the same business day as purchased. Our type F right angle male connector is part of over one million RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
