75 Ohm F Male Straight Connectors

Check out our new RF calculators & conversion tools...

75 Ohm F Male Connector Compression Attachment for PE-B159, 1855A, Mini 59

Product ID: PE44573

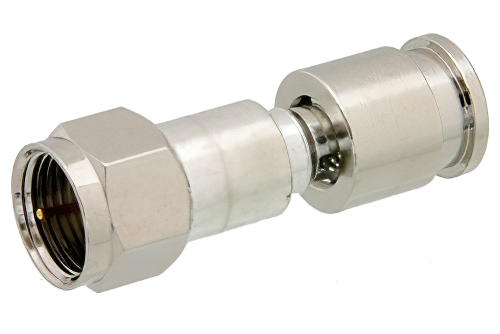

75 Ohm F Male Connector Compression Attachment for PE-B159, 1855A, Mini 59


Image Views:  75 Ohm F Male Connector Compression Attachment for PE-B159, 1855A, Mini 59 high resolution
Zoomalternate image

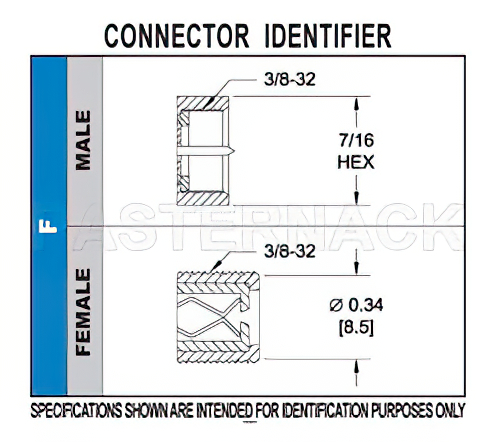

View 2


Click for:PE44573 Datasheet
Click for:PE44573 RoHS Cert
Click for:PE44573 REACH Cert
Available Quantity: 732
Pricing Table
QUANTITYPRICE
1-24$4.55
25-49$4.23
50-99$3.91
100+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesF
Connector GenderMale
Impedance75 Ohm
Body StyleStraight
Attachment MethodCompression
Mount MethodNone
Minimum FrequencyDC
Maximum Frequency3 GHz


75 Ohm F Male Connector Compression Attachment For Mini 59, PE-B159

PE44573 type F male coaxial connector has an interface type of Mini 59, PE-B159 and a 75 Ohm impedance. Pasternack type F male connector uses shield/contact compression as an attachment method. Our male type F coaxial connector provides a minimum frequency of DC and a maximum frequency of 3 GHz.

The Pasternack F type male coaxial connector has a ptfe/delrin dielectric type. The Pasternack F type coaxial connector has a brass body with nickel plating. This type F male coaxial RF connector is RoHS and REACH compliant.

This Pasternack male F type connector will ship the same day as purchased. Our type F male connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom type F connector cable assemblies that will ship the same day as well.
