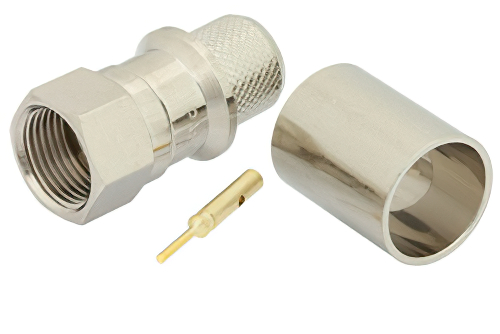

75 Ohm F Male Connector Crimp/Solder Attachment for RG11, RG216, RG144

Product ID: PE44315
75 Ohm F Male Connector Crimp/Solder Attachment for RG11, RG216, RG144


Image Views:  75 Ohm F Male Connector Crimp/Solder Attachment for RG11, RG216, RG144 high resolution
Zoomalternate image
View 2


Click for:PE44315 Datasheet
Click for:PE44315 RoHS Cert
Click for:PE44315 REACH Cert
Available Quantity: 2,719
Pricing Table
QUANTITYPRICE
1-24$5.60
25-49$5.21
50-99$4.82
100-249$4.48
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesF
Connector GenderMale
Impedance75 Ohm
Body StyleStraight
Attachment MethodCrimp/Solder
Mount MethodNone
Minimum FrequencyDC
Maximum Frequency1,000 MHz


75 Ohm F Male Connector Crimp/Solder Attachment For RG11

PE44315 type F male coaxial connector has an interface type of RG11 and a 75 Ohm impedance. Pasternack type F male connector uses shield/contact crimp/solder as an attachment method. Our male F type coaxial connector provides a minimum frequency of DC and a maximum frequency of 1,000 MHz.

The Pasternack type F male coaxial connector has a teflon dielectric type and a VSWR of 1.3. The Pasternack type F coaxial connector has a brass body with nickel plating. Our PE44315 type F connector uses brass contact. This type F male coaxial RF connector is RoHS and REACH compliant.

This Pasternack male type F connector will ship the same day as purchased. Our type F male connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom F type connector cable assemblies that will ship the same day as well.
